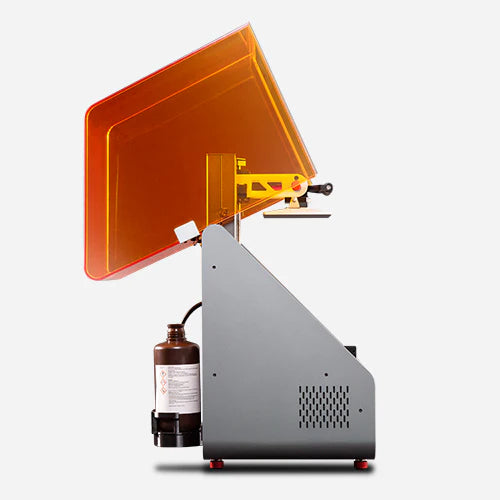

Zortrax Inkspire 2 Side Profile

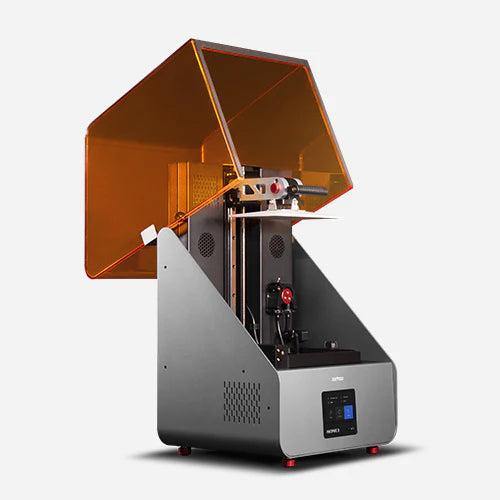

Zortrak Inskpire 2 Side Profile

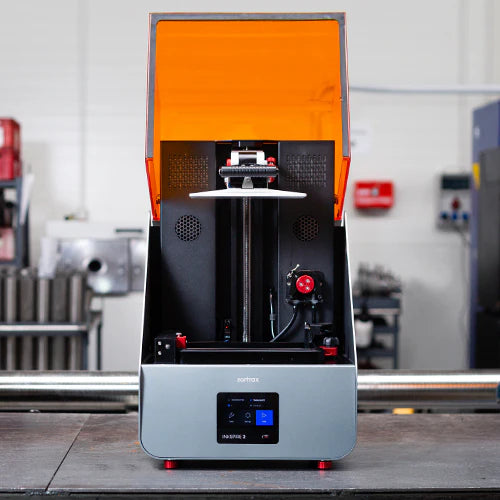

Zortrak Inkspire 2 Lifestyle Photo
  • SKU:

Zortrax Inkspire 2

The Zortrax Inkspire 2 is an advanced UV LCD 3D printer engineered for high-quality resin pri...

£2,495.83

The Zortrax Inkspire 2 is an advanced UV LCD 3D printer engineered for high-quality resin printing with a streamlined, automated workflow.

It surpasses its predecessor, the Inkspire, in size, power, and overall performance. The Inkspire 2 ensures that each print meets or exceeds the mechanical and thermal specifications stated by the resin manufacturers.

Made-to-Order: 3-4 Week Lead Time

Key Features

  • Build Volume: 192 x 120 x 280 mm
  • XY Precision: 50 µm; Layer Height: 25/50/100 µm
  • Pre-Calibrated Build Platform
  • Automated Resin Level Control

Proprietary Light Engine
The printer features a unique LED panel beneath a monochromatic LCD screen, ensuring uniform light distribution and high optical precision for each pixel across the entire build platform. This precision is maintained regardless of the platform's fill level, providing consistent dimensional accuracy from the centre to the edges.

High-Grade Resin Compatibility
The powerful light engine is compatible with many high-grade engineering resins that require a 405 nm wavelength for curing. This capability, typically reserved for industrial DLP machines, is now accessible with the ease and simplicity of UV LCD technology.

Automated Workflow
The Inkspire 2 automates much of the printing process. It measures the required resin for a print, verifies sufficient resin levels in the tank and bottle, and prevents resin sedimentation with an automatic wiper during long prints. In the event of a power outage, the printer can safely resume printing once power is restored. Post-print, the Inkspire 2 can also transfer leftover resin back into the bottle

Technical Specifications

Model Inkspire 2 Printing properties
Manufacturer Zortrax Positioning resolution (XY) 50m
Technology UV LCD Positioning resolution (Z) -
Build Volume 192 x 120 x 280 mm Layer height 25, 50, 100 m
Light source LED UV 405 nm Operating humidity Auto-leveling (30-point leveling)
Electronics Quadcore processor Ambient operating temperature 20-40C
Resin level control Yes Software Z-SUITE
Self-levelling Yes Supported files .stl, .obj, .3mf, .dxf (only 2D models), .ply
Integrated webcam Yes Connectivity Wi-Fi, LAN, USB
Entrance 100-240 V AC 6.2 A 50/60 Hz Printer dimensions 236 mm x 245 mm x 416 mm
Consumption 340 W HS Code 8477.5900
Output - Package contents Zortrax Inkspire 2 UV resin, bottle holder, FEP film (set), cleaner set, resin sensor set, starter kit
