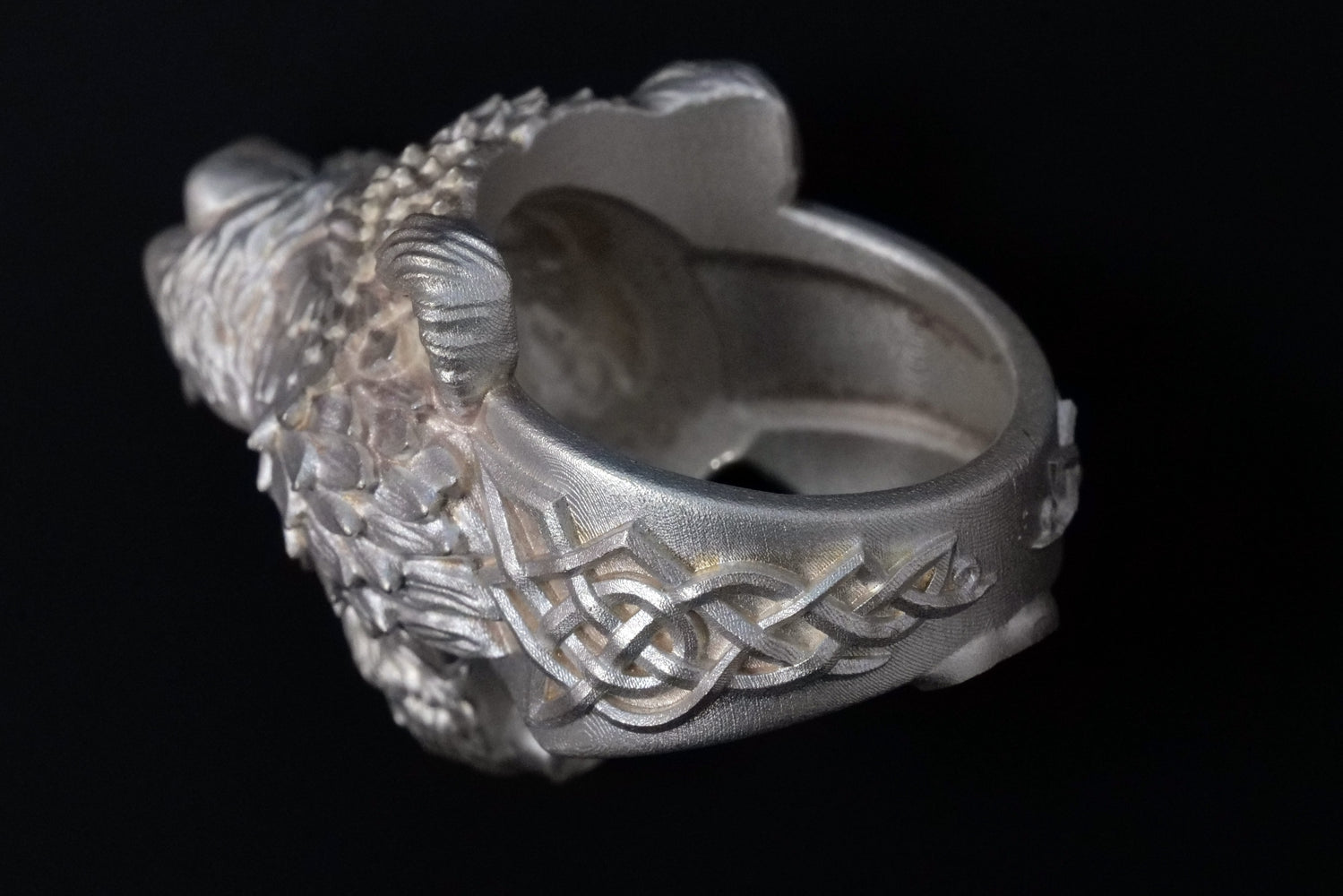

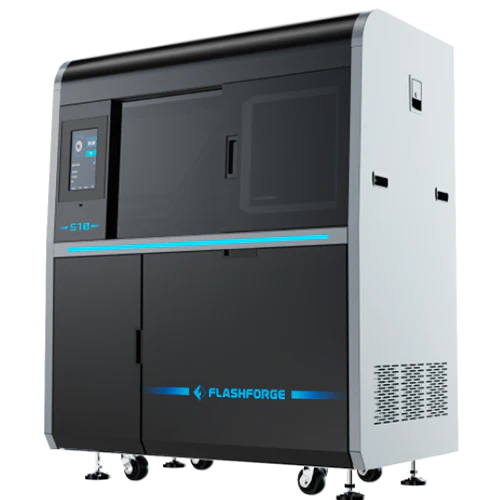

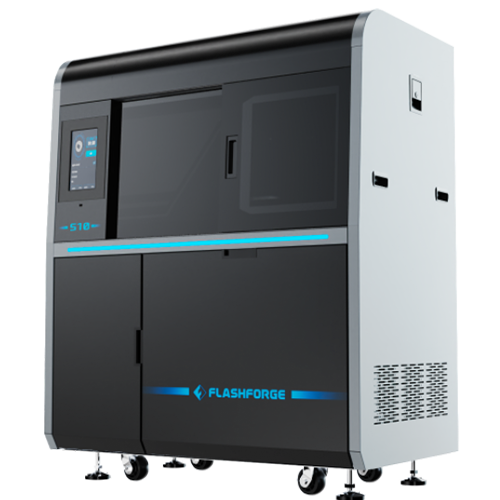

The FlashforgeWaxJet510 is engineered to meet the exacting demands of high-precision jewellery manufacturing. Utilising advanced MultiJet Printing (MJP) technology, it delivers exceptional detail and smooth surface finishes, making it ideal for K-gold jewellery casting. With its high-resolution capabilities and efficient workflow, theWaxJet510 streamlines the production process, reducing time to market and labour costs.
| Printing Technology | MultiJet Printing (MJP) | Material Name | FFWJ200 | FFWJ3200 |
| Build Volume | 289×208×100 mm | Material Type | Part material | Support material |
| Printing Mode | XHD 2900×2900×1700 DPI; 15 µm | Net Weight | 1.5 kg/bottle | 1.6 kg/bottle |
| Dimensional Accuracy | 0.04 mm / 20 mm | Composition | 100 % wax | Wax support material |
| Power Supply | AC 220-240 V, 50 Hz, 4 kW | Color | Red | White |
| Net Weight | 480 kg | Density @ 95 °C (Liquid) | 0.79 g/cm³ | 0.85 g/cm³ |
| Gross Weight | 630 kg | Melting Point | 68 °C | 55 °C |
| Package Size | 1530×775×1600 mm | Softening Point | 63 °C | -- |
| Slicing Software | WaxJetPrint | Volumetric Shrinkage | 1.1 % | -- |
| Supported File Format | .stc /.slc | Linear Shrinkage | 0.7 % | -- |
| Email Notification | ON | Needle Penetration Hardness | 9 | -- |
| Hard Disk Capacity | 500 G | Ash Content | <0.01 % | -- |
| Connectivity | Network 10/100/1000 Ethernet / USB | Description | High-precision casting wax | Hands-free dissolvable support material |
| Supported Operating System | Windows 7 / Windows 10 (64-bit) | |||
| Working Environment | Temperature 18–26 °C; Humidity 30–70 % |
The WaxJet 510 delivers professional-grade results with a compact footprint. Its precision printing and seamless software simplify your workflow, making it ideal for both production houses and design studios.
High Precision Printing – 2900 × 2900 × 1700 DPI, 15 μm layers for flawless detail. Efficient Workflow – WaxJetPrint software with one-click layout optimisation. 24/7 Unattended Printing – engineered for continuous, reliable operation. Contact-Free Support Removal – 100 % wax supports dissolve completely. Cost-Effective Production – cuts time-to-market by two-thirds and material cost by 10 %.
