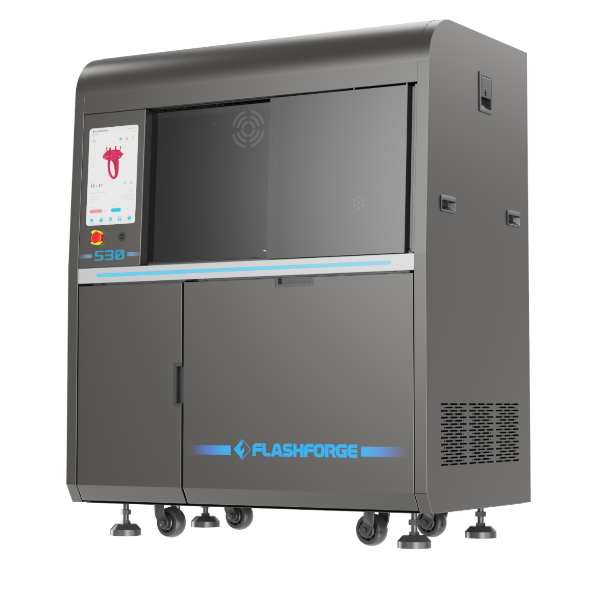

The WaxJet 530 is a cutting-edge machine that delivers unparalleled accuracy in printing intricate jewellery designs. It offers enhanced flexibility in both design and manufacturing, making it an essential tool for the jewellery industry.
Enjoy uninterrupted, reliable, around-the-clock printing with our fully automated workflow. Simply upload your print files, start printing with a single tap, and leave the machine to do the rest.
The high-speed, high-resolution triple printhead system of the Flashforge WaxJet 530 XHD enhances design flexibility and manufacturing efficiency for the jewelry industry.
| Printing Technology | High-Resolution Triple Print Head | Material Name | Flexi-Red Build Material | Advanced Wax, Flexible for Stone-in-Wax |
| Build Volume | 289×208×100 mm | Material Type | Part material | Support material |
| Printing Mode | 2900×2900×1700 DPI; 15 µm | Net Weight | 1.5 kg/bottle | 1.6 kg/bottle |
| Dimensional Accuracy | 0.04 mm / 20 mm | Composition | 100 % wax | Wax support material |
| Power Supply | AC 220–240 V, 4 kW, 20 A | Color | Red | White |
| Net Weight | 480 kg | Density @ 95 °C (Liquid) | 0.79 g/cm³ | 0.85 g/cm³ |
| Gross Weight | 630 kg | Melting Point | 68 °C | 55 °C |
| Package Size | 1530 × 900 × 1837 mm | Softening Point | 63 °C | -- |
| Slicing Software | WaxJetPrint | Volumetric Shrinkage | 1.1 % | -- |
| Supported File Format | .stc /.slc | Linear Shrinkage | 0.7 % | -- |
| Email Notification | ON | Needle Penetration Hardness | 9 | -- |
| Hard Disk Capacity | 500 G | Ash Content | <0.01 % | -- |
| Connectivity | Network 10/100/1000 Ethernet / USB | Description | High-precision casting wax | Hands-free dissolvable support material |
| Supported Operating System | Windows 7 / Windows 10 (64-bit) | |||
| Working Environment | Temperature 18–26 °C; Humidity 30–70 % |
The WaxJet 530 XHD delivers unmatched detail and speed for jewellery applications, leveraging a high-resolution triple-head system at 2900 × 2900 × 1700 dpi and fine 15 µm layers to reproduce intricate designs flawlessly. Its new Flexi-Red build material offers exceptional tensile strength and flexibility—allowing stones to be set directly in the wax pattern before casting—while the innovative honeycomb support structure cuts dewax time and alcohol usage dramatically. Engineered for continuous, unattended operation, the machine pairs seamless WaxJetPrint software (with one-click layout optimization) and remote maintenance capabilities to keep production running around the clock. Overall, the 530 XHD reduces material costs by up to 78 %, accelerates prototyping cycles, and lowers the total cost of ownership for professional jewellery manufacturers.
High Precision Printing – 2900 × 2900 × 1700 DPI, 15 μm layers for flawless detail. Efficient Workflow – WaxJetPrint software with one-click layout optimisation. 24/7 Unattended Printing – engineered for continuous, reliable operation. Contact-Free Support Removal – 100 % wax supports dissolve completely. Cost-Effective Production – cuts time-to-market by two-thirds and material cost by 10 %.
