The Thunk3d Jewellery Scanner is the perfect companion for 3D design. Making Shaped Weds could never be easier.
Made to Order - Delivery is 1 week from order.
Further Information

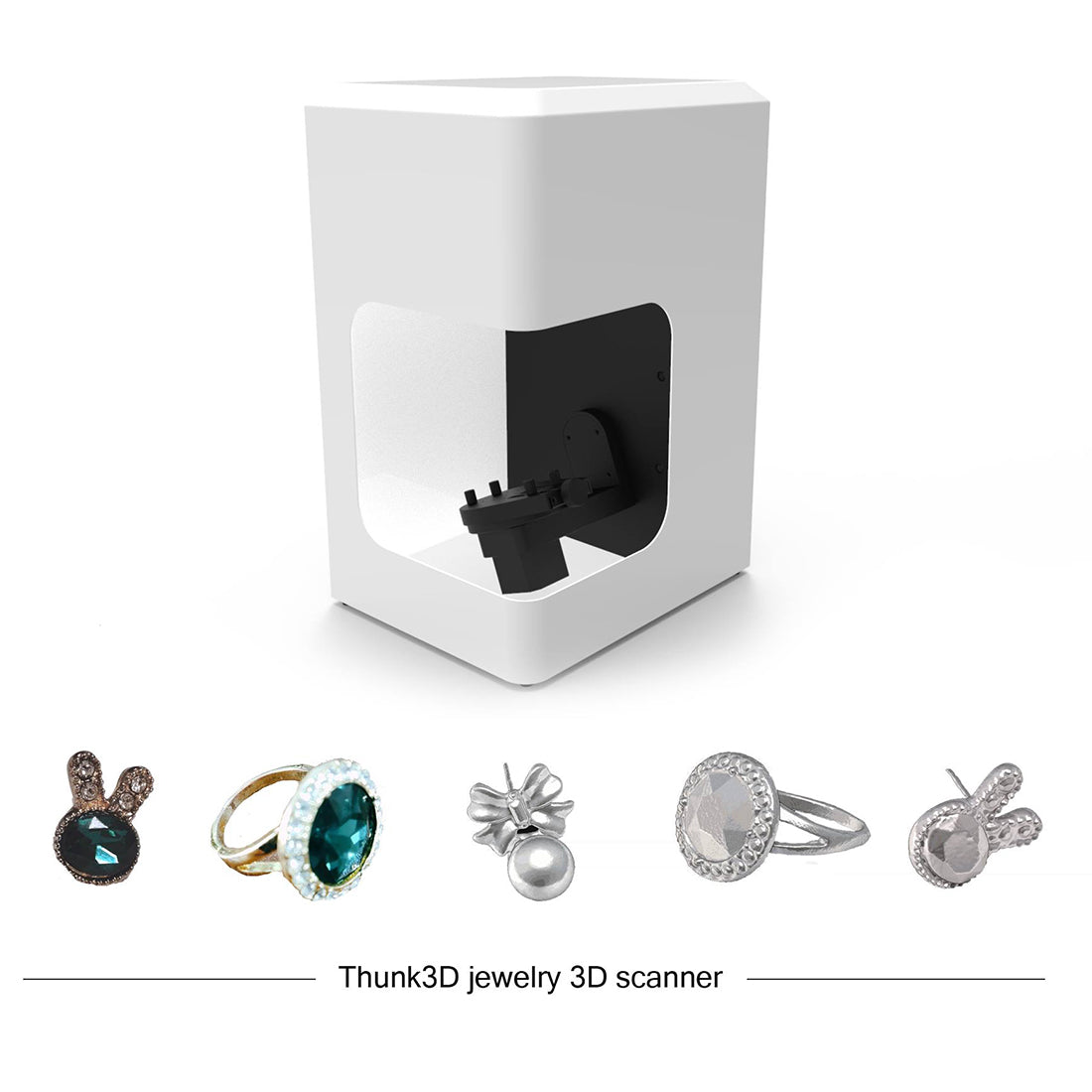

The Thunk3D Jewellery Scanner provides incredibly detailed scans of objects between 5-80 mm in volume. Designed to be used with 3D printers, the scanner replicates the scanned object in a print with accuracy.

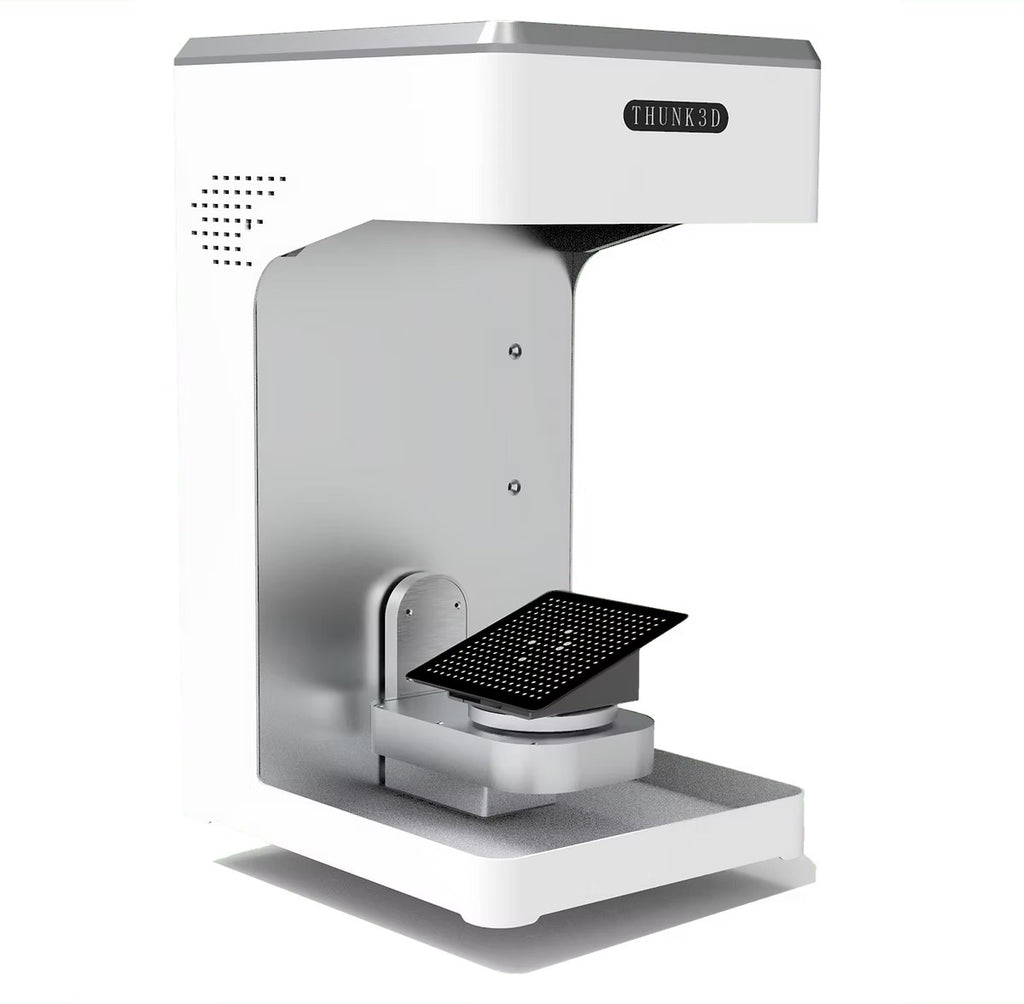

A more compact desktop version of the previous 3D scanner, the white design is easy to accommodate on any desk.
Specifications
|
| Sensor: |
CMOS,1.31mp * 2 |
Scan volume: |
5-80 mm
|
| Raster: |
1280*1080 DLP= 8mm*6mm |
Scan speed: |
1-3S/Frame
|
| Lens: |
16mm/5mp * 2 |
Scan mode: |
Auto scan |
| Alignment: |
Feature/Mark Align;
|
Resolution: |
0.06 mm
|
| Certificate: |
CE/FCC/WEEE/CNAS |
Accuracy: |
< 10 um |
| Export format: |
STL/AC |
PC require: |
Nvida GM>2GB
|
| Multi item mode: |
Yes
|
System require: |
>Win7(64bit+) |
