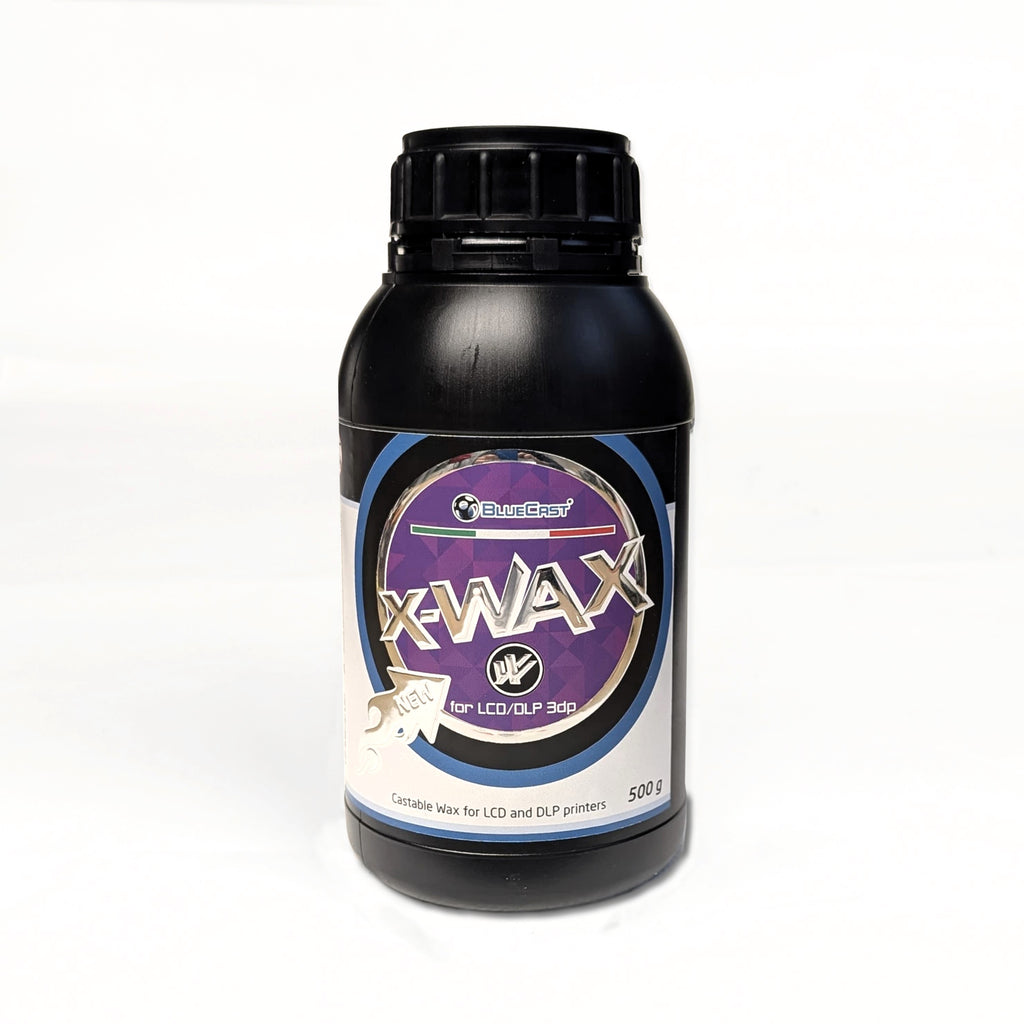

X-Wax™ by BlueCast: Revolutionizing Jewelry 3D Printing
Elevate your jewelry design and casting workflow with X-Wax™, the world’s first true liquid wax resin formulated for LCD and DLP 3D printers. Developed over years of research, X-Wax™ combines the precision of modern vat-based printing with the familiar, reliable behavior of investment casting wax—because over 80% of its composition is genuine micro-casting wax. Whether you’re an experienced jeweler, prototyping intricate designs, or simply seeking spotless castings, X-Wax™ transforms every step of your process.
Why X-Wax™ Stands Out
-
True Liquid Wax
Unlike other “castable resins,” X-Wax™ isn’t just wax-like—it is wax. Its exceptionally high wax content (80%+) ensures that your printed models behave, burn out, and cast just like traditional wax patterns.
-
Flawless Castability
With zero ash or residue after burnout, X-Wax™ guarantees pristine molds and cleaner metal runs. Enjoy peace of mind knowing your castings will capture every fine detail—exactly as designed.
-
Dimensional Stability
Eliminate the guesswork: X-Wax™ maintains true dimensions with no shrinkage or expansion. Every detail, from the tiniest filigree to bold statement pieces, prints and casts flawlessly.
-
Universal Compatibility
Designed to work seamlessly with all standard investment materials and burnout cycles. No matter your kiln schedule or investment brand, X-Wax™ integrates smoothly.
-
Effortless Printing
Compatible with all LCD (including monochrome) and DLP printers, X-Wax™ offers low viscosity for minimal bleeding. Print at 385 nm or 405 nm for optimal cure control:
-
385 nm UV: Lower penetration, sharper feature control
-
405 nm UV: Strong curing energy for rapid build speeds
-
User-Friendly & Eco-Conscious
• Minimal odor and fumes for a more pleasant workspace
• Non-hazardous formulation prioritizes your health
• Over 80% natural wax reduces environmental impact from production to disposal
Quick Start: LCD Printing Basics
Important: These settings apply exclusively to X-Wax™. Other BlueCast resins require different parameters.
-
Bottle Preparation
• Warm the sealed bottle at 35–40 °C for 5 minutes (do not exceed 60 °C).
• Shake vigorously for 1 minute to ensure uniform consistency.
-
Printer & Environment
• Use PFA films ≤ 127 µm to maximize resolution.
• For printers with a tilting vat, consider an anti-curl film (ACF).
• Maintain ambient temperature between 25 °C and 35 °C (acceptable range: 18 °C–45 °C).
• If your printer or vat has heating capabilities, set it to 30 °C to prevent wax solidification mid-print.
-
Baseline Settings (Monochrome LCD)
| Parameter |
Value |
| Layer Height |
0.03 mm |
| Bottom Layers |
10 |
| Bottom Exposure Time |
30 s |
| Layer Exposure Time |
8 s |
| Rest Time Before Print |
1 s |
| Bottom Layer Peel Speed |
50 mm/min |
| Normal Layer Peel Speed |
150 mm/min |
For optimized profiles, download the latest Chitubox (or equivalent slicer) X-Wax™ settings.
-
Storage Recommendations
• Store unopened bottles at 10 °C–25 °C (room temperature).
• Prolonged exposure below 10 °C may cause wax to solidify; gently rewarm before use.
Simplified Post-Printing Workflow
Forget time-consuming post-cure baths or multiple chemical steps—X-Wax™ is engineered for speed and simplicity without sacrificing results.
-
First Wash
Rinse printed patterns in IPA (isopropyl alcohol) or ethyl alcohol for 5 minutes.
-
Blow-Dry
Use cold compressed air to eliminate excess uncured resin from fine details.
-
Second Wash
Submerge for an additional 3 minutes in fresh IPA, then dry again with compressed air.
-
Optional Cleaning
For ultimate cleanliness, employ a 3D wash station or ultrasonic cleaner—especially useful for ultra-detailed designs.
-
Rest & Tree Assembly
Let models dry and stabilize for 15–20 minutes before mounting on the casting tree.
Alternative: For BlueCast Liquid Curing users—wash in BlueCast Liquid Curing solution for 10 minutes, air-blow, rinse with water, and dry.
Burnout & Casting
-
Universal Burnout Cycles: Follow your standard micro-casting schedule. X-Wax™ fully converts to carbon without ash, eliminating residue concerns.
-
Investment Compatibility: Works flawlessly with every major investment brand. No need to adjust your proven cycle.
-
Result: Exceptionally clean molds that capture every nuance of your design—ready for straight nursery to burn-out to casting.
Who Should Use X-Wax™?
-
Professional Jewelers & Benchworkers looking to accelerate prototyping and reduce clean-up time.
-
3D Printing Enthusiasts specializing in micro-casting and fine-detail projects.
-
Educational & Industrial Labs that demand consistent, predictable wax prints for research or small-batch production.
What’s in the Box
-
1 kg Bottle of X-Wax™ Castable Resin (sealed)
-
Comprehensive Quick Start Guide (printed)
-
Access to Downloadable Printer Profiles for all major slicers
Tips for Best Results
- Always warm resin bottles gently and shake before pouring.
- Use heated vats or heated chambers when environmental temperatures dip below 25 °C.
- Maintain consistent exposure settings—refer to our updated Chitubox profile online.
- Replace IPA cleaning baths regularly to avoid contamination.
Safety Data Sheet
Printing date: 01/04/2025 Revision: 01.12.2024
according to 1907/2006/EC, Article 31
SECTION 1: Identification of the substance/mixture and of the company/undertaking
1.1 Product Identifier
-
Trade name: Blue Cast X-Wax
-
Synonym / Description: Photocurable resin for DLP/SLA 3D printers for direct investment casting of jewelry / acrylic paint for UV cure for figurines
1.2 Relevant Identified Uses
Application of the substance/preparation: Resin for DLP/SLA 3D printers / UV curable paint for figurines
1.3 Details of the Supplier
Manufacturer / Supplier:
BlueCast
Corso Italia, 25
Verdello 24049 BG, Italy
Tel: +39 035 52 93 098
Mobile: +39 348 339 1300
1.4 Emergency Telephone Number
BlueCast Production SRL:
+39 348 339 1300
+39 035 52 93 098
| Country |
Official Advisory Body |
Address |
Emergency Phone |
Comment |
| Ireland |
National Poisons Information Centre |
Beaumont Hospital, PO Box 1297, Beaumont Road 9 |
+353 1 809 2566 (Healthcare professionals – 24/7)
+353 1 809 2166 (Public, 8 am–10 pm, 7/7) |
|
| United Kingdom |
National Poisons Information Service (Birmingham Centre) |
City Hospital, Dudley Road, B18 7QH |
0344 892 0111 |
Only for healthcare professionals |
| USA |
America’s Poison Centers |
Multiple addresses. Please visit www.poisoncenters.org |
1-800-222-1222 |
|
SECTION 2: Hazards Identification
2.1 Classification of the Substance or Mixture
According to regulation (EC) No 1272/2008 (CLP):
-
GHS08 (Health Hazard)
Repr. 2 H361f: Suspected of damaging fertility.
Aquatic Chronic 3 H412: Harmful to aquatic life with long-lasting effects.
According to directive 67/548/EEC or 1999/45/EC:
- Xn; Harmful
- R62: Possible risk of impaired fertility.
- R52/53: Harmful to aquatic organisms; may cause long-term adverse effects in the aquatic environment.
Information concerning particular hazards for human and environment: Not applicable.
Classification system: The classification is according to the latest editions of the EU-lists and extended by company and literature data.
2.2 Label Elements
Labelling according to Regulation (EC) No 1272/2008 (CLP):
-
Hazard pictograms: ⚠️ (GHS08), 🌊 (Aquatic)
-
Signal word: Warning
-
Hazard-determining component of labelling: Diphenyl(2,4,6-trimethylbenzoyl)phosphinoxid
-
Hazard statements:
- H361f: Suspected of damaging fertility.
- H412: Harmful to aquatic life with long-lasting effects.
-
Precautionary statements:
- P281: Use personal protective equipment as required.
- P273: Avoid release to the environment.
- P405: Store locked up.
- P501: Dispose of contents/container in accordance with local/regional/national/international regulations.
-
Additional information: For the wording of the listed risk phrases refer to Section 16.
-
Result of PBT and vPvB assessment: Not applicable.
-
PBT: Not applicable.
-
vPvB: Not applicable.
SECTION 3: Composition/Information on Ingredients
| Component |
Concentration (w/w) |
CAS Number |
| Oligomers |
5 – 70 % |
C.A.S. reserved (white label) |
| Additives |
5 – 70 % |
C.A.S. reserved (white label) |
| Photoinitiators |
0.1 – 5 % |
75980-60-8 |
| Synthetic Wax |
10 – 90 % |
8002-74-2 |
SECTION 4: First Aid Measures
4.1 Description of First Aid Measures
General information: Immediately remove any clothing soiled by the product. Involve a doctor immediately.
After inhalation:
• In case of accidental inhalation of monomers, provide fresh air, rest, and warmth.
• If unconscious, place patient in a stable side position for transportation.
• Seek medical attention.
After skin contact:
• Wash immediately with water and soap; rinse thoroughly.
• Avoid exposure to UV and sunlight.
After eye contact:
• Rinse opened eye under running water for several minutes.
• Consult a doctor.
After swallowing:
• Call a doctor immediately.
• Rinse mouth and drink plenty of water.
4.2 Most Important Symptoms and Effects
No further relevant information available.
4.3 Indication of Immediate Medical Attention and Special Treatment
No further relevant information available.
SECTION 5: Firefighting Measures
5.1 Extinguishing Media
- Fight larger fires with water spray or alcohol-resistant foam.
- Use fire-extinguishing methods suitable to surrounding conditions.
- Unsuitable extinguishing agent: direct water jet.
5.2 Special Hazards Arising from the Substance or Mixture
In case of fire, CO₂ can be released.
5.3 Advice for Firefighters
- Wear a self-contained respiratory protective device.
- Wear a fully protective suit.
SECTION 6: Accidental Release Measures
6.1 Personal Precautions, Protective Equipment, and Emergency Procedures
- Ensure adequate ventilation.
- Keep people at a distance and stay on the windward side.
6.2 Environmental Precautions
- Inform authorities if product seeps into watercourses or sewer systems.
- Do not allow to enter sewers, surface water, or groundwater.
6.3 Methods and Material for Containment and Cleaning Up
Dispose contaminated material as waste according to Section 13.
6.4 Reference to Other Sections
- See Section 7 for information on safe handling.
- See Section 8 for personal protection equipment.
- See Section 13 for disposal information.
SECTION 7: Handling and Storage
7.1 Precautions for Safe Handling
- Ensure good ventilation/exhaustion at the workplace.
- Open and handle receptacle with care.
- Prevent formation of dust.
-
Fire and explosion protection: Keep ignition sources away; do not smoke. Protect from heat.
7.2 Conditions for Safe Storage, Including Any Incompatibilities
-
Storage: Store in cool, dry conditions in well-sealed receptacles. Protect from heat and direct sunlight. Store under lock and key or with access restricted to technical experts only. Do not expose above 60 °C.
-
Common Storage Facility: Not required.
7.3 Specific End Use(s)
No further relevant information available.
SECTION 8: Exposure Controls/Personal Protection
8.1 Control Parameters
No ingredients with workplace exposure limits requiring monitoring.
Additional information: The valid lists at the time of preparation were used as a basis.
8.2 Exposure Controls
-
General protective and hygienic measures: Follow usual measures when handling chemicals. Keep away from food, beverages, and animal feed. Wash hands before breaks and after work.
-
Respiratory protection: For brief or low exposure, use a suitable respirator (filter device). For intensive or prolonged exposure, use a self-contained respiratory protective device. If exposed to dust, a respirator is mandatory.
-
Hand protection: Wear nitrile gloves (solvent-free products). Replace gloves immediately if torn or if appearance (size, color, flexibility) changes. Exact breakthrough time must be confirmed by glove manufacturer.
-
Eye protection: Tightly sealed goggles; recommended during refilling.
-
Body protection: Impervious protective clothing.
SECTION 9: Physical and Chemical Properties
9.1 Information on Basic Physical and Chemical Properties
-
Appearance: Liquid; Color: Black
-
Odor: Characteristic acrylic
-
Odor Threshold: Not determined
-
Melting Point / Range: 18 – 25 °C
-
Boiling Point / Range: Undetermined
-
Flash Point: > 100 °C
-
Decomposition Temperature: > 250 °C
-
Flammability: Product is not flammable; not self-igniting; not explosive.
-
Vapor Pressure: Not applicable
-
Density (20 °C): 1.08 g/cm³
-
Relative Density: Not determined
-
Vapor Density: Not applicable
-
Evaporation Rate: Not applicable
-
Solubility in / Miscibility with Water (20 °C): > 300 g/L
-
Partition Coefficient (n-octanol/water): Not determined
-
Viscosity (Dynamic at 25 °C): Not applicable
-
Viscosity (Kinematic): Not applicable
-
Solid Contents: 100 %
9.2 Other Information
No further relevant information available.
SECTION 10: Stability and Reactivity
10.1 Reactivity
No data provided.
10.2 Chemical Stability
- Do not expose to temperatures above 60 °C.
- No decomposition if used and stored according to specifications.
10.3 Possibility of Hazardous Reactions
No dangerous reactions known.
10.4 Conditions to Avoid
No further relevant information available.
10.5 Incompatible Materials
Incompatible with acids and bases. Avoid moisture.
10.6 Hazardous Decomposition Products
No dangerous decomposition products known.
SECTION 11: Toxicological Information
11.1 Information on Toxicological Effects
-
Acute Toxicity / Primary Irritant Effect:
- Skin irritation (OECD 404): 0.04 (rabbit) (PII 0–8)
- Eye irritation (OECD 405): 2.2 (rabbit) (PII 0–13)
-
Skin Corrosion/Irritation: Based on available data, classification criteria are not met.
-
Serious Eye Damage/Irritation: Causes serious eye irritation.
-
Respiratory or Skin Sensitisation: No sensitizing effect known.
-
CMR Effects (Carcinogenicity, Mutagenicity, Reproductive Toxicity): Based on available data, classification criteria are not met.
SECTION 12: Ecological Information
12.1 Toxicity
No further relevant information available.
12.2 Persistence and Degradability
No further relevant information available.
12.3 Bioaccumulative Potential
No further relevant information available.
12.4 Mobility in Soil
No further relevant information available.
Ecotoxicological Effects
- Harmful to fish.
-
General Notes: Water hazard class 2 (German Regulation) (Self-assessment): hazardous for water. Do not allow product to reach groundwater, watercourses, or sewage systems. Danger to drinking water if even small quantities leak into the ground. Harmful to aquatic organisms.
12.5 Results of PBT and vPvB Assessment
- PBT: Not applicable.
- vPvB: Not applicable.
12.6 Other Adverse Effects
No further relevant information available.
SECTION 13: Disposal Considerations
13.1 Waste Treatment Methods
-
Recommendation: Can be incinerated when in compliance with local regulations.
-
European Waste Catalogue: 08 01 99 – wastes not otherwise specified.
-
Uncleaned Packaging: Disposal must be made according to official regulations. Packaging may be reused or recycled after cleaning.
SECTION 14: Transport Information
| UN-Number |
Void |
| UN Proper Shipping Name |
Void |
| Transport Hazard Class(es) |
Void |
| Packing Group |
Void |
| Environmental Hazards |
Marine pollutant: No |
| Special Precautions for User |
Not applicable |
| Transport in Bulk According to Annex II of MARPOL 73/78 and the IBC Code |
Not applicable |
SECTION 15: Regulatory Information
15.2 Chemical Safety Assessment: A Chemical Safety Assessment has not been carried out.
SECTION 16: Other Information
The data are based on the current state of our knowledge and are intended to describe the product with regard to safety requirements. They should not be taken to imply any guarantee of a particular or general specification. It is the user’s responsibility to ensure the product is suitable for the intended purpose and method of use. We do not accept liability for any harm caused by use of this information. Furthermore, nothing herein shall be construed as a recommendation to use any product in conflict with existing patents covering any material or use. Our general conditions of sale apply in all cases.
Abbreviations and Acronyms
-
RID: Regulations concerning the international transport of Dangerous Goods by Rail
-
ICAO: International Civil Aviation Organization
-
ADR: European Agreement concerning the international carriage of Dangerous Goods by Road
-
IMDG: International Maritime Dangerous Goods (Association)
-
GHS: Globally Harmonized System of Classification and Labelling of Chemicals
-
CAS: Chemical Abstracts Service (division of the American Chemical Society)
*Data compared to the previous version altered.
Transform your creative process—print it, wash it, and cast it with complete confidence. Order your bottle of X-Wax™ today!
