TRILAB DELTIQ 2 PLUS 3D PRINTER
- Regular price
- Sale price
- Regular price
- Unit price
Adding product to your cart
FDM (Fused Deposition Modeling)

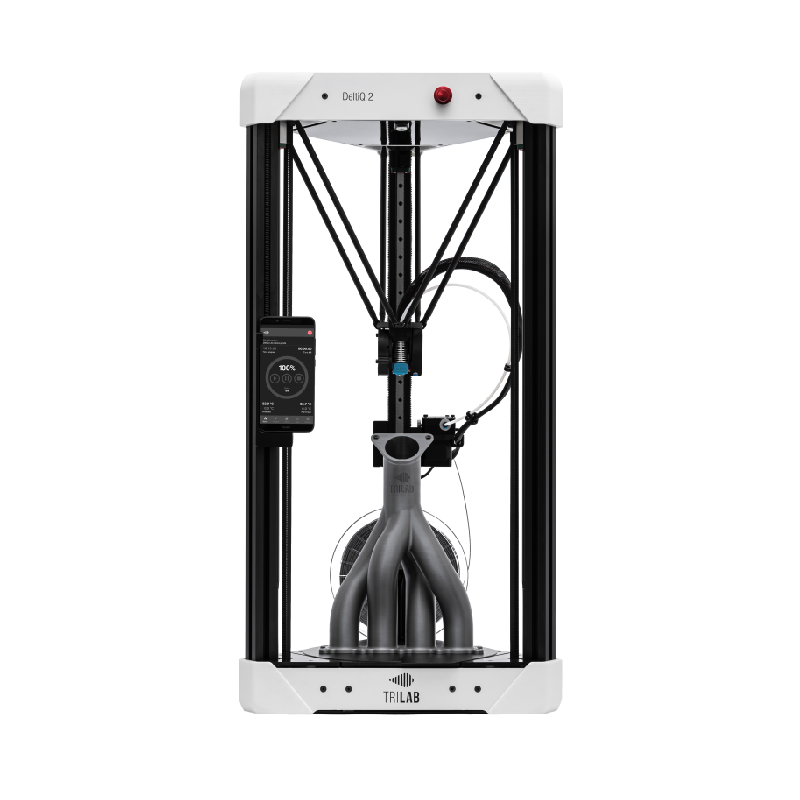

TRILAB DeltiQ 2 Plus 3D printer
TRILAB DeltiQ 2 Plus is a professional 3D printer working in FDM technology with a working area of Ø 250mm (X, Y) × 500mm (Z). The printer has an intelligent Tripple Lock system that ensures a perfect connection between parts. The print head does not have a heavy engine, which increases the speed of 3D printing while maintaining the best possible quality.
TRILAB DeltiQ 2 Plus
TRILAB DeltiQ 2 Plus 3D printer
During 3D printing, the model is static, which results in excellent print quality along with the entire height of the model. The unconventional and unexpected orientation of the model can be safely printed for even better surface quality. The printer allows you to use many materials - from ordinary filaments to modern and advanced materials, such as composites or flexible filaments. It allows manual control, via the DeltaControl wireless display, via a smartphone app, or remotely via the WebControl interface.
TRILAB DeltiQ 2 3D printer has a replaceable Zesty Nimble extruder, which allows for trouble-free printing even from the most delicate flexible materials.

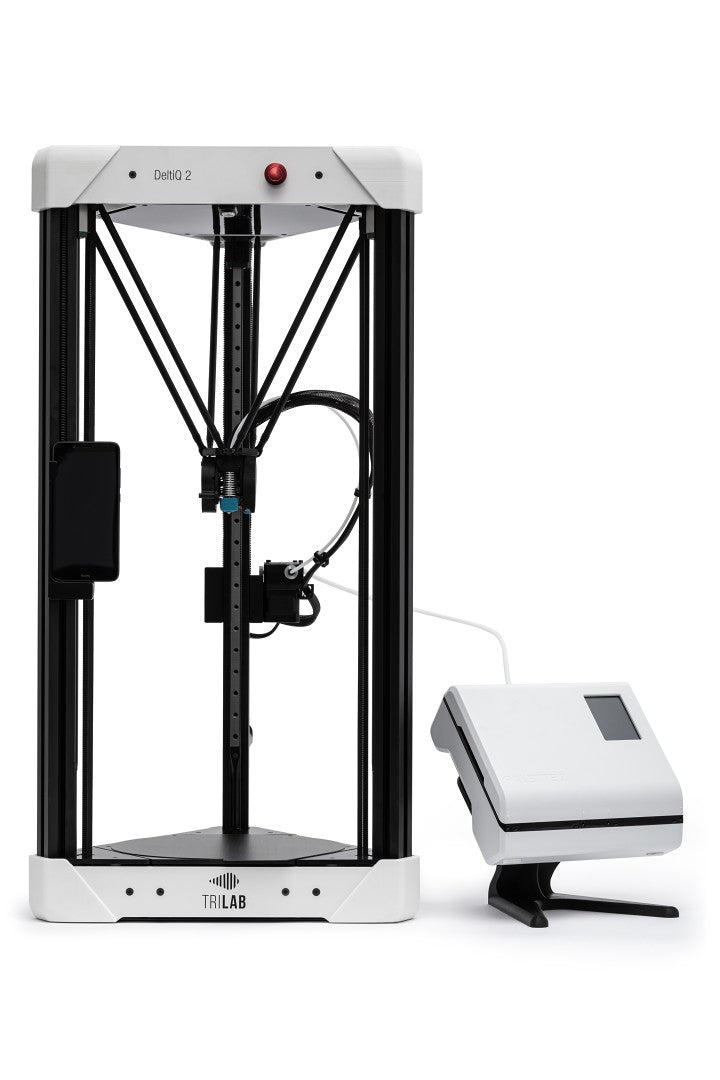

TRILAB DeltiQ 2 3D printer is equipped with one extruder with one nozzle. This configuration is 100% reliable and hassle-free. Instead of changing the extruder, we add a smart external device called Mosaic Palette 2 that allows you to print from up to 4 materials at a time.

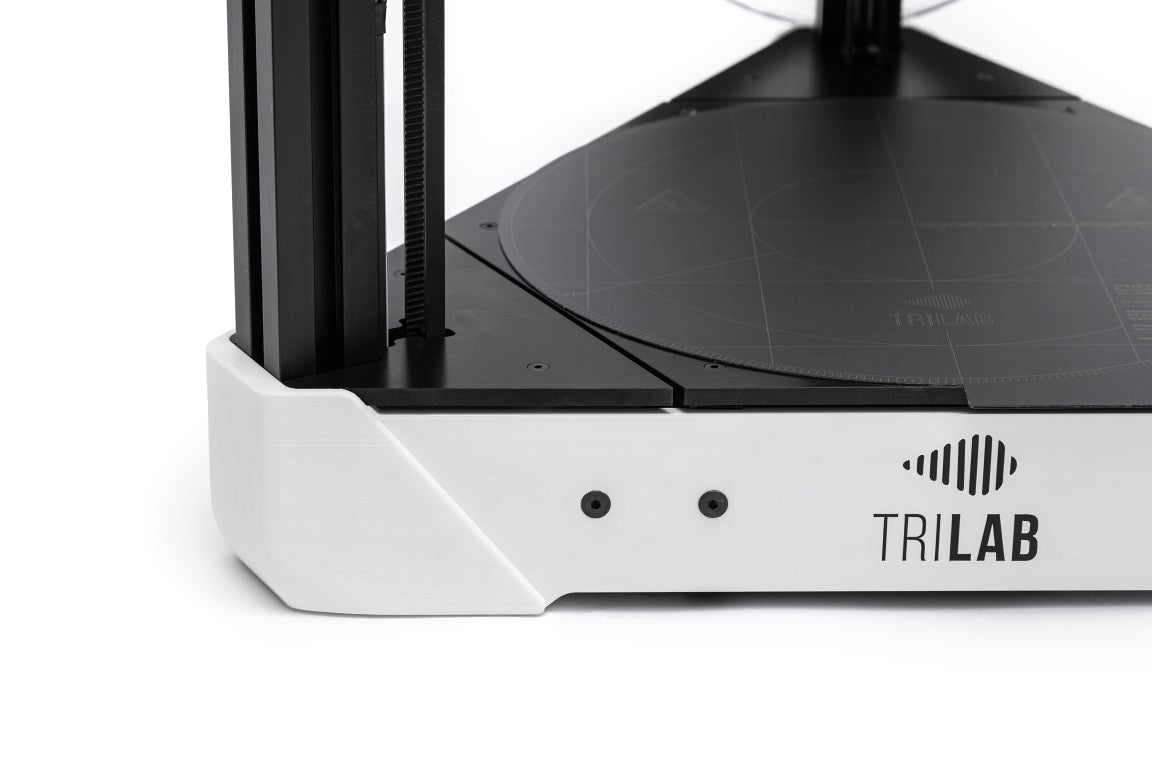

A sturdy frame
The rigid frame of the 3D printer ensures stability of the device and better quality of 3D prints. The intelligent "Triple Lock" system ensures a perfect connection between the parts. The printer has an excellent 32-bit controller that processes complex traffic with easy, silent motor movement and allows online access to the printer.
Light print head
Without a heavy extruder motor, the print head minimizes the impact of inertia on print quality. This results in very fast 3D printing while maintaining the best possible quality.
Replaceable PrintPad sheets
Replaceable PrintPad sheets are a quick and easy way to remove a finished printout. It is also the first step towards fully automated additive manufacturing. You can choose the PrintPad surface that suits your needs.
Unique combination of extruders
The DeltiQ 2 3D printer uses two easily replaceable extruders: the Bowden E3D Titan for excellent surface quality and the Zesty Nimble for flexible materials.

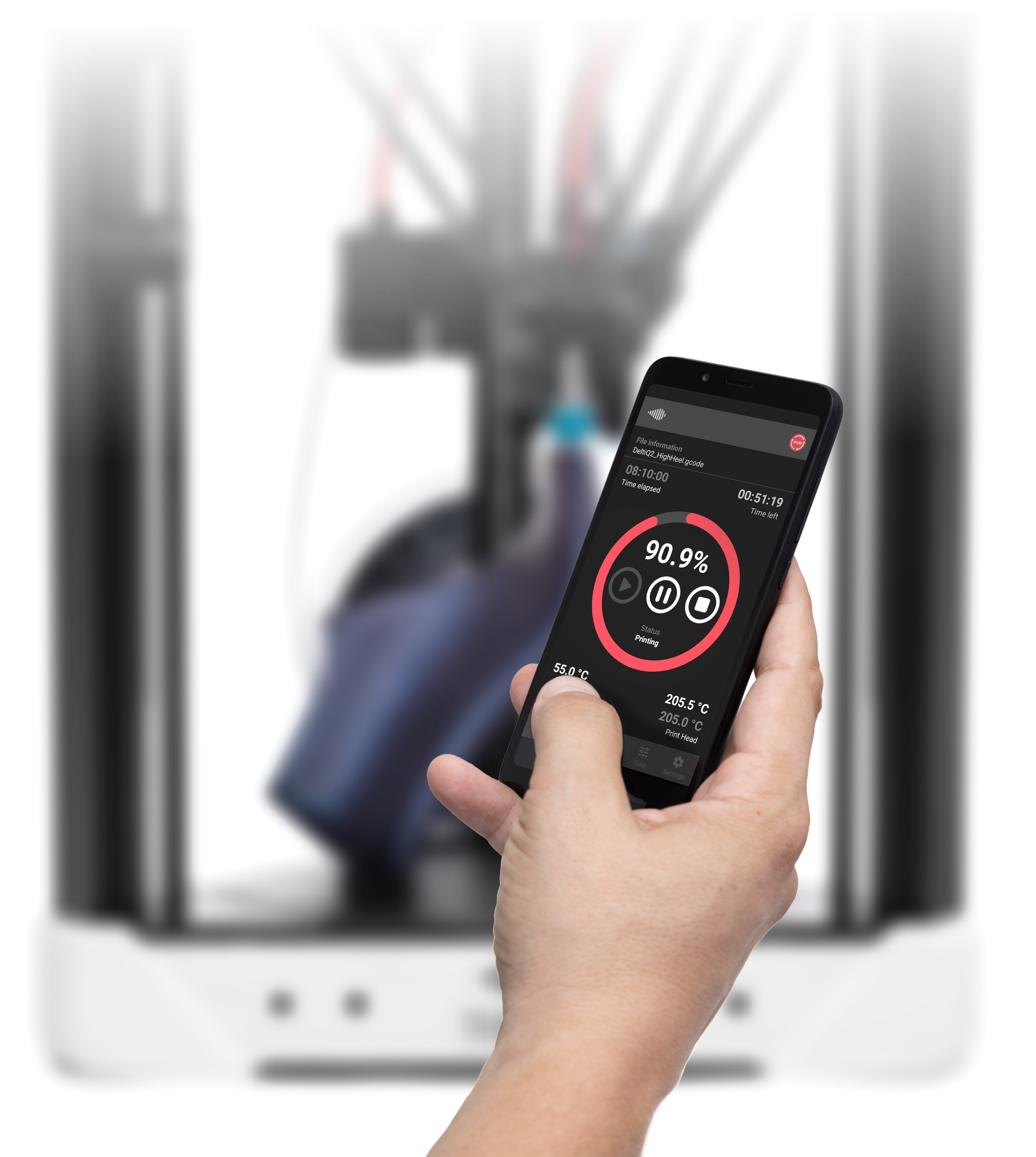

Revolutionary printer control
The DeltiQ 2 Plus 3D printer allows you to control the printer using the DeltaControl wireless display, which can be safely hidden in the charging station using the WebControl interface on a PC / Mac or using the DeltaControl application on your smartphone. And all of this both locally and remotely.
- High DPI resolution and great readability of the display
- Display Hub with integrated charger
- Intuitive interface
- Allows you to control the printer from a PC, Mac or tablet
- Remote access worldwide (can be disabled)
TRILAB DeltiQ 2 Plus 3D printer guarantees perfect, high-quality prints. A wide range of supported materials, two excellent extruders and stimulating the freedom of printing orientation allow you to print any model with complex geometry.
Standard models and materials
DeltiQ 2 Plus allows you to print models from PLA, PETG or CPE materials, which are characterized by excellent surface quality.
Larger and difficult models
Models printed from PLA, PETG or CPE materials can be printed without or with a limited need for supports made of the same material.
Technical and composite materials
The hardened nozzle allows you to print models from technical materials such as ABS / ASA, Nylon or Nylon with CF.
The FlexPrint head allows you to print models from flexible materials such as TPU or TPE.
DeltiQ 2 Plus allows you to print models from wax or PMMA filaments, which are designed to create precise casting molds.
The QuadPrint head allows you to print multi-color or multi-material models at the same time.
|Print Technology||FDM (Fused Deposition Modeling)|
|Table temperature||Max. 105 °C|
|Working area||Ø 250mm (X, Y) × 500mm (Z)|
|Supported materials||Standard: PLA, PETG/CPE, ABS/ASA, PETG-CF, PC, PP, PVA, BVOH, PACF, PAGF / FlexPrint: nylon/PA, flexible materials (TPA, TPU)|
|Filament diameter||1.75 mm|
|Extruder||E3D Titan extruder, optional "FlexPrint Edition" - Zesty Nimble extruder for demanding and flexible filaments|
|Nozzle temperature||Standard up to 300 °C, with upgraded temperature sensor up to 350 °C|
|Build Plate||Massive, 5 mm thick aluminium heated print base|
|Supports print formats||STL, gcode; standard slicers (Kisslicer, Cura, PrusaSlicer, Slic3r, Simplify3D)|
|Connectivity||LAN or WIFI with local or remote access 3x USB: WIFI / LAN module / USB disk / webcam / Palette 2|
|Power||Input 100-240 V, Output 24 V, 250 W|
|Printhead||E3D V6 all-metal hotend|
|Rodzaj drukarki||FFF, FDM, LPD|
|Rozdzielczość osi X/Y||According to the used nozzle in the range of 0.25-1.2 mm, standard 0.4 mm|
|Rozdzielczość osi Z||A layer height of down to 50 microns, maximum layer height depends on the used nozzle|
|Storage temperature||0-32 ˚C|
|Dimensions||41 x 50 x 98 cm|
|Working Temperature||Recommended printer operating temperature is 20 - 32 ° C|
|Control interface||5.45 ”IPS" DeltaControl "wireless display incl. charging station, DeltaControl application; iOS / Android, WebControl interface; PC / Mac|
|Print Monitoring||Multi-color LED indicator for visual overview of printing status, built-in camera with print backlight|
|Multifilament printing||TRILAB “QuadPrint Edition“: multifilament solution for up to 4 filament colors or various materials or combination with soluble/breakaway support materials|
