Trilab Delta Q2
  • SKU:


 TRILAB DeltiQ 2 3D printer TRILAB DeltiQ 2 Plus is a professional 3D printer working in FDM...

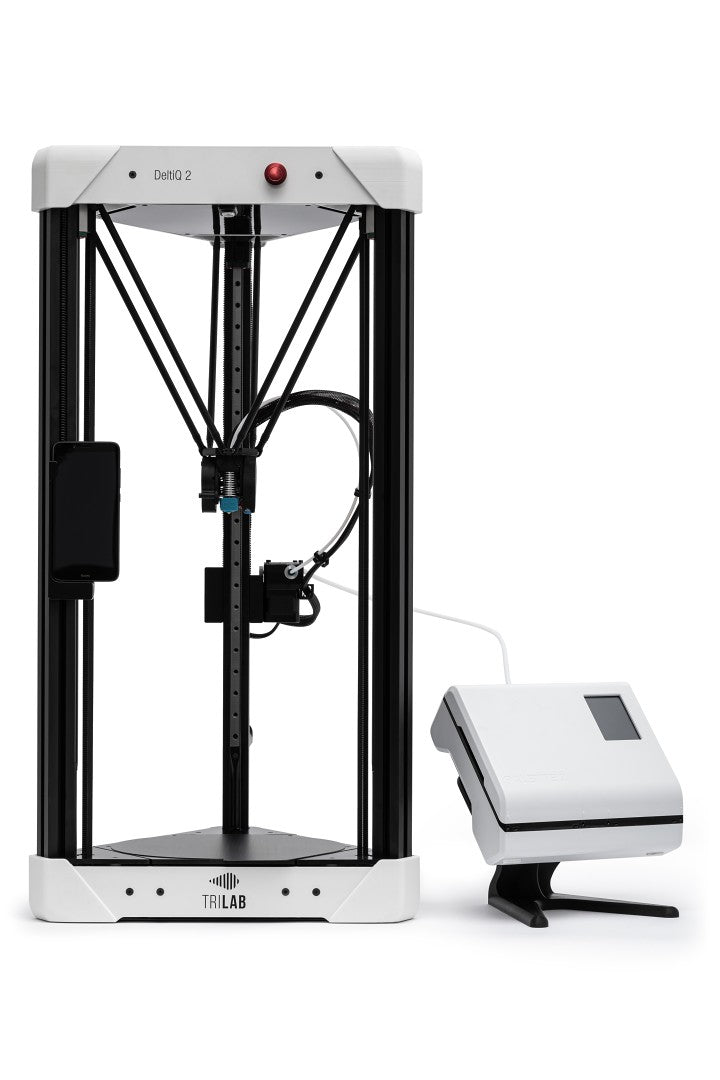

 TRILAB DeltiQ 2 3D printer

TRILAB DeltiQ 2 Plus is a professional 3D printer working in FDM technology with a working area of ​​Ø 250mm (X, Y) × 500mm (Z).

Made-to-Order: 2 Week Lead Time

The printer has an intelligent Tripple Lock system that ensures a perfect connection between parts. The print head does not have a heavy engine, which increases the speed of 3D printing while maintaining the best possible quality.


TRILAB DeltiQ 2 3D printer is equipped with an easily replaceable Bowden E3D Titan extruder. The E3D Titan extruder is designed for excellent surface quality, DeltiQ also supports Zesty Nimble extruders designed to work with flexible materials. The printer has a 32-bit controller that improves and speeds up the work of the printer and allows remote access to the 3D printer.

TRILAB DeltiQ 2 3D printer

During 3D printing, the model is static, which results in excellent print quality along the entire height of the model. The unconventional and unexpected orientation of the model can be safely printed for even better surface quality. The printer allows you to use many materials - from ordinary filaments to modern and advanced materials, such as composites or flexible filaments. It allows manual control, via the DeltaControl wireless display, via a smartphone app or remotely via the WebControl interface.

TRILAB FlexPrint

TRILAB DeltiQ 2 3D printer has a replaceable Zesty Nimble extruder, which allows for trouble-free printing even from the most delicate flexible materials.

TRILAB QuadPrint

TRILAB DeltiQ 2 3D printer is equipped with one extruder with one nozzle. This configuration is 100% reliable and hassle-free. Instead of changing the extruder, we add a smart external device called Mosaic Palette 2 that allows you to print from up to 4 materials at a time.

A sturdy frame

The rigid frame of the 3D printer ensures stability of the device and better quality of 3D prints. The intelligent "Triple Lock" system ensures a perfect connection between the parts. The printer has an excellent 32-bit controller that processes complex traffic with easy, silent motor movement and allows online access to the printer.

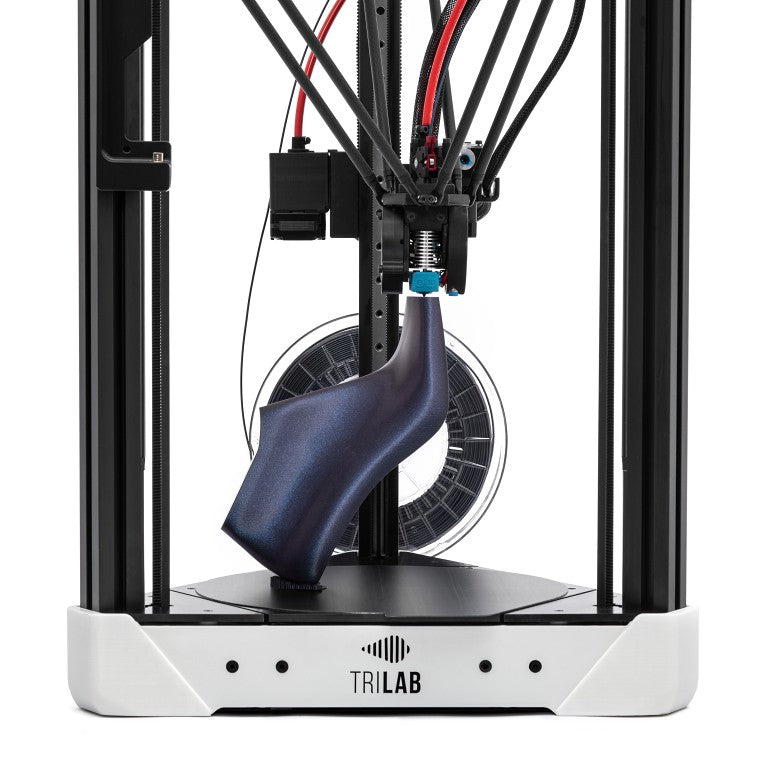

Light print head

Without a heavy extruder motor, the print head minimizes the impact of inertia on print quality. This results in very fast 3D printing while maintaining the best possible quality.

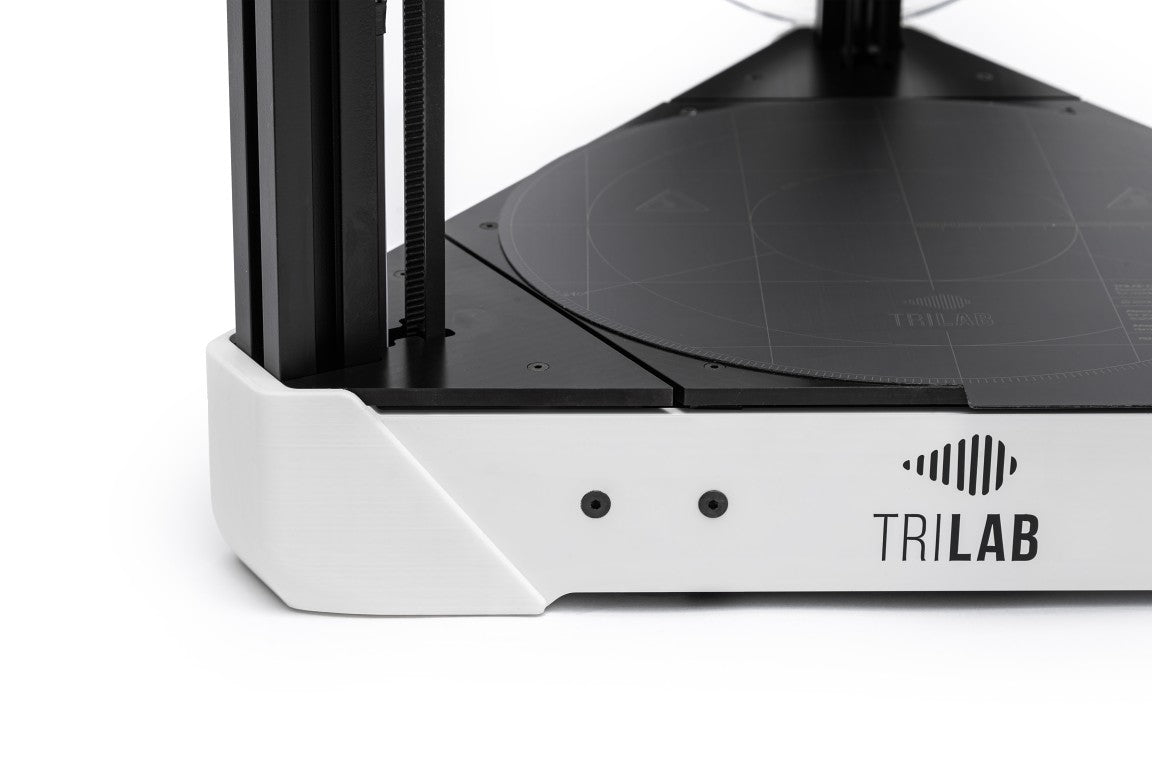

Replaceable PrintPad sheets

Replaceable PrintPad sheets are a quick and easy way to remove a finished printout. It is also the first step towards fully automated additive manufacturing. You can choose the PrintPad surface that suits your needs.

Unique combination of extruders

The DeltiQ 2 3D printer uses two easily replaceable extruders: the Bowden E3D Titan for excellent surface quality and the Zesty Nimble for flexible materials.

Revolutionary printer control

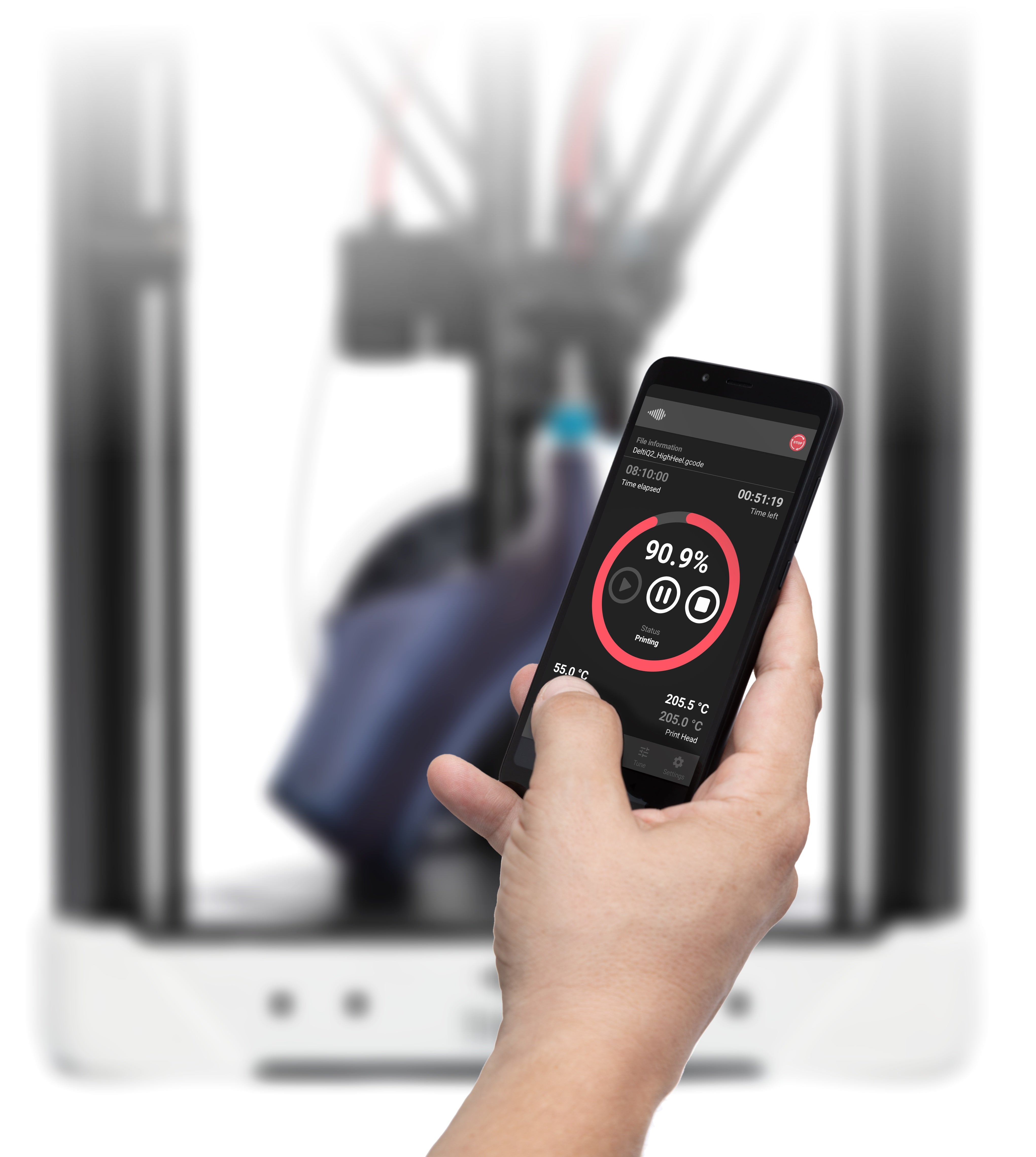

The DeltiQ 2 3D printer allows you to control the printer using the DeltaControl wireless display, which can be safely hidden in the charging station using the WebControl interface on a PC / Mac or using the DeltaControl application on your smartphone. And all of this both locally and remotely.

TRILAB DeltaControl
  • High DPI resolution and great readability of the display
  • Display Hub with integrated charger
  • Intuitive interface
Web Control
  • Allows you to control the printer from a PC, Mac or tablet
  • Remote access worldwide (can be disabled)


Print everything

TRILAB DeltiQ 2 3D printer provides perfect, high-quality prints. A wide range of supported materials, two excellent extruders and the freedom of printing orientation stimulating the freedom to print any model with complex geometry.


Standard models and materials

Standard models of PLA, PETG or CPE materials are printed on the DeltiQ 2 with ease and excellent surface quality.

Larger and difficult models

Larger and more difficult models made of PLA, PETG or CPE are printed on DeltiQ 2 with no or limited need for supports of the same material.

Technical and composite materials

Using a hardened nozzle, you can print models from technical materials such as ABS / ASA, Nylon or Nylon with CF.

Flexible materials

The FlexPrint head enables printing from flexible materials such as TPU or TPE.

Wax filaments

DeltiQ 2 allows you to print models from wax or PMMA filaments, from which you can prepare precise casting molds.

Multi-material models

The QuadPrint head enables multi-color or multi-material printing at the same time.


Data sheet

Print Technology FDM (Fused Deposition Modeling)
Table temperature Max. 105 °C
Working area Ø 250mm (X, Y) × 300mm (Z)
Supported materials Standard: PLA, PETG/CPE, ABS/ASA, PETG-CF, PC, PP, PVA, BVOH, PACF, PAGF / FlexPrint: nylon/PA, flexible materials (TPA, TPU)
Filament diameter 1.75 mm
Extruder E3D Titan extruder, optional "FlexPrint Edition" - Zesty Nimble extruder for demanding and flexible filaments
Nozzle temperature Standard up to 300 °C, with upgraded temperature sensor up to 350 °C
Build Plate Massive, 5 mm thick aluminium heated print base
Supports print formats STL, gcode; standard slicers (Kisslicer, Cura, PrusaSlicer, Slic3r, Simplify3D)
Connectivity LAN or WIFI with local or remote access 3x USB: WIFI / LAN module / USB disk / webcam / Palette 2
Power Input 100-240 V, Output 24 V, 250 W
Printhead E3D V6 all-metal hotend
Type of Printer FFF, FDM, LPD
 X/Y Resolution According to the used nozzle in the range of 0.25-1.2 mm, standard 0.4 mm
 Z Resolution A layer height of down to 50 microns, maximum layer height depends on the used nozzle
Storage temperature 0-32 ˚C
Weight 10 kg
Dimensions 41 x 50 x 81 cm
Working Temperature Recommended printer operating temperature is 20 - 32 ° C
Control interface  5.45 ”IPS" DeltaControl "wireless display incl. charging station, DeltaControl application; iOS / Android, WebControl interface; PC / Mac
Print Monitoring Multi-color LED indicator for visual overview of printing status, built-in camera with print backlight
Multifilament printing TRILAB “QuadPrint Edition“: multifilament solution for up to 4 filament colors or various materials or combination with soluble/breakaway support materials
