FDM (Fused Deposition Modeling)

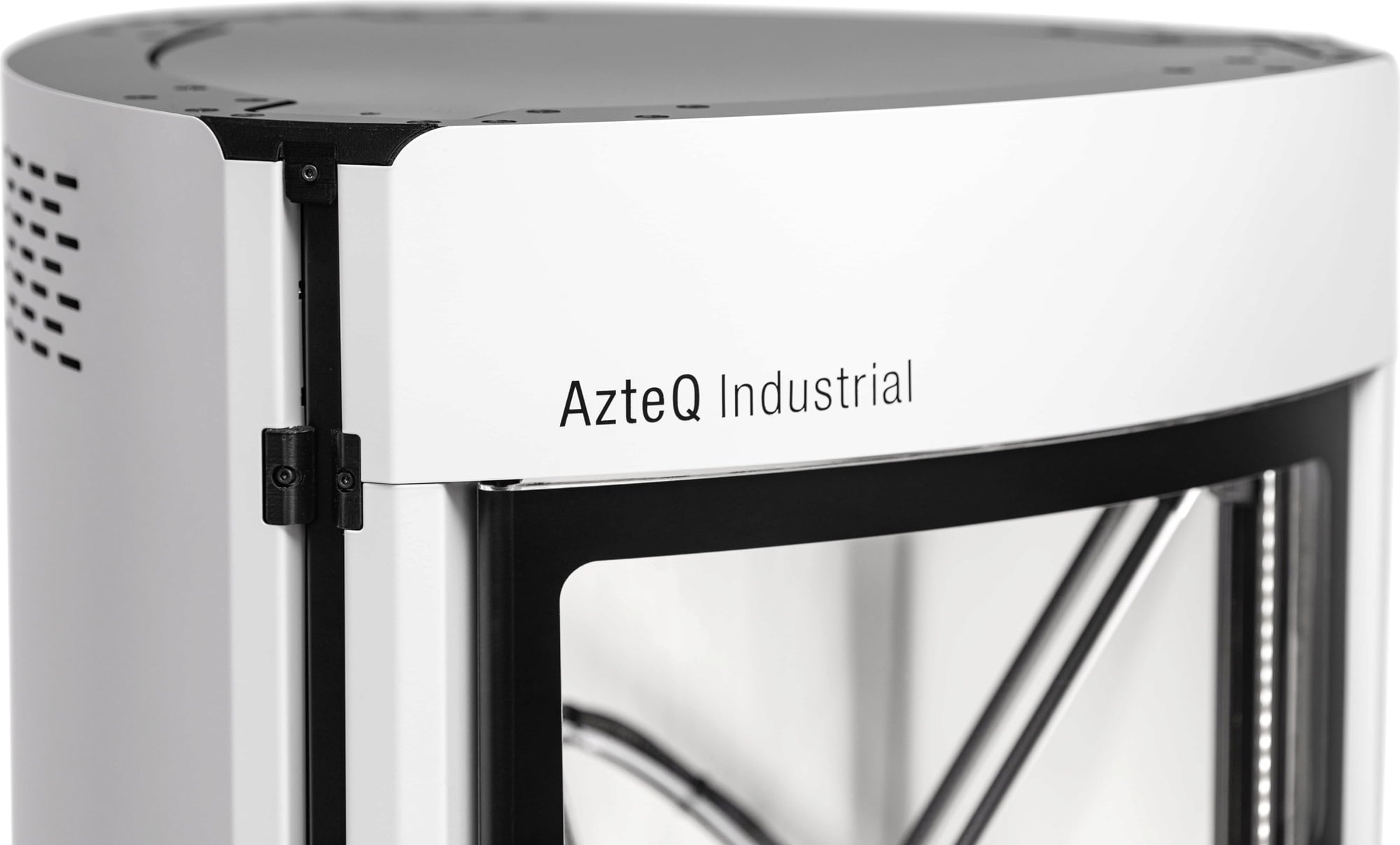

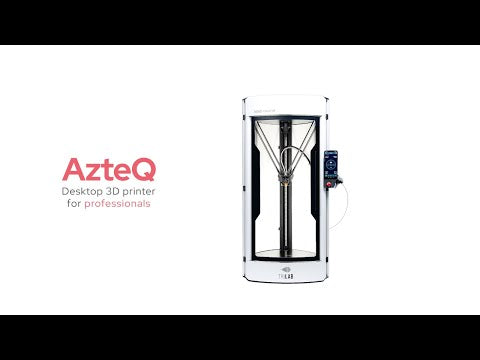

TRILAB AzteQ 3D printer

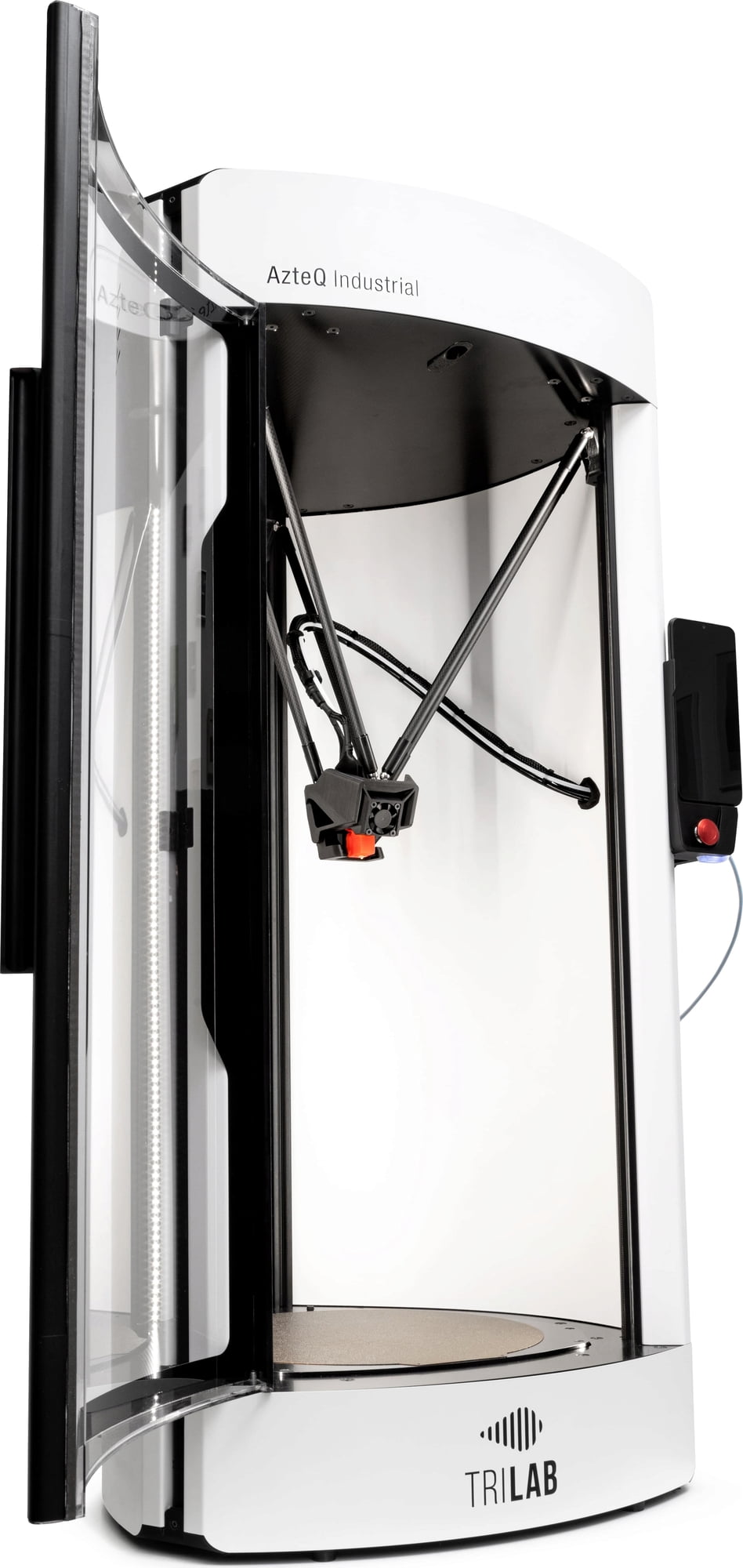

AzteQ is an industrial 3D printer working in FDM technology with a working area of ​​Ø 300 mm (X, Y) × 400 mm (Z) with a closed, actively heated chamber up to 80 ° C, ensuring the highest quality 3D printing. The AzteQ Industrial printer allows you to print models from materials such as ABS, ASA, PA, PC or PP, which can withstand high temperatures and are chemically and mechanically resistant.



TRILAB AzteQ 3D printer

TRILAB AzteQ 3D printer is equipped with interchangeable print heads, which makes it possible to choose the most appropriate configuration of the print head. E3D V6, Volcano or SuperVolcano hotends can be combined with specific types and sizes of nozzles. In addition, each printhead is equipped with an auto-calibrated strain gauge to ensure a truly perfect first layer. AzteQ was built as a high-volume 3D printer. The maximum print size for the AzteQ Industrial model is 30 cm in diameter and 40 cm in height.



TRILAB AzteQ

All electronics and control systems are separate from the printing chamber and placed in a separate, actively cooled chamber. This prevents thermal stress on the electronics during long-term printing at high temperatures in the chamber. Flexible PrintPad allows you to easily remove the model after printing and is the first step in the automation of additive production. In addition, a wide range of PrintPad surface variants ensures optimal adhesion to the various types of materials used for 3D printing.

Actively heated printing chamber

Thanks to the actively heated print chamber that can reach up to 80 ⁰C, you can safely print large models from high-tech materials such as ABS, ASA, nylon, polycarbonate or newly emerging durable materials.

A large number of prints

AzteQ is designed as a high-volume delta 3D printer. The maximum print size for the AzteQ Industrial model is 30 cm in diameter and 40 cm in height.

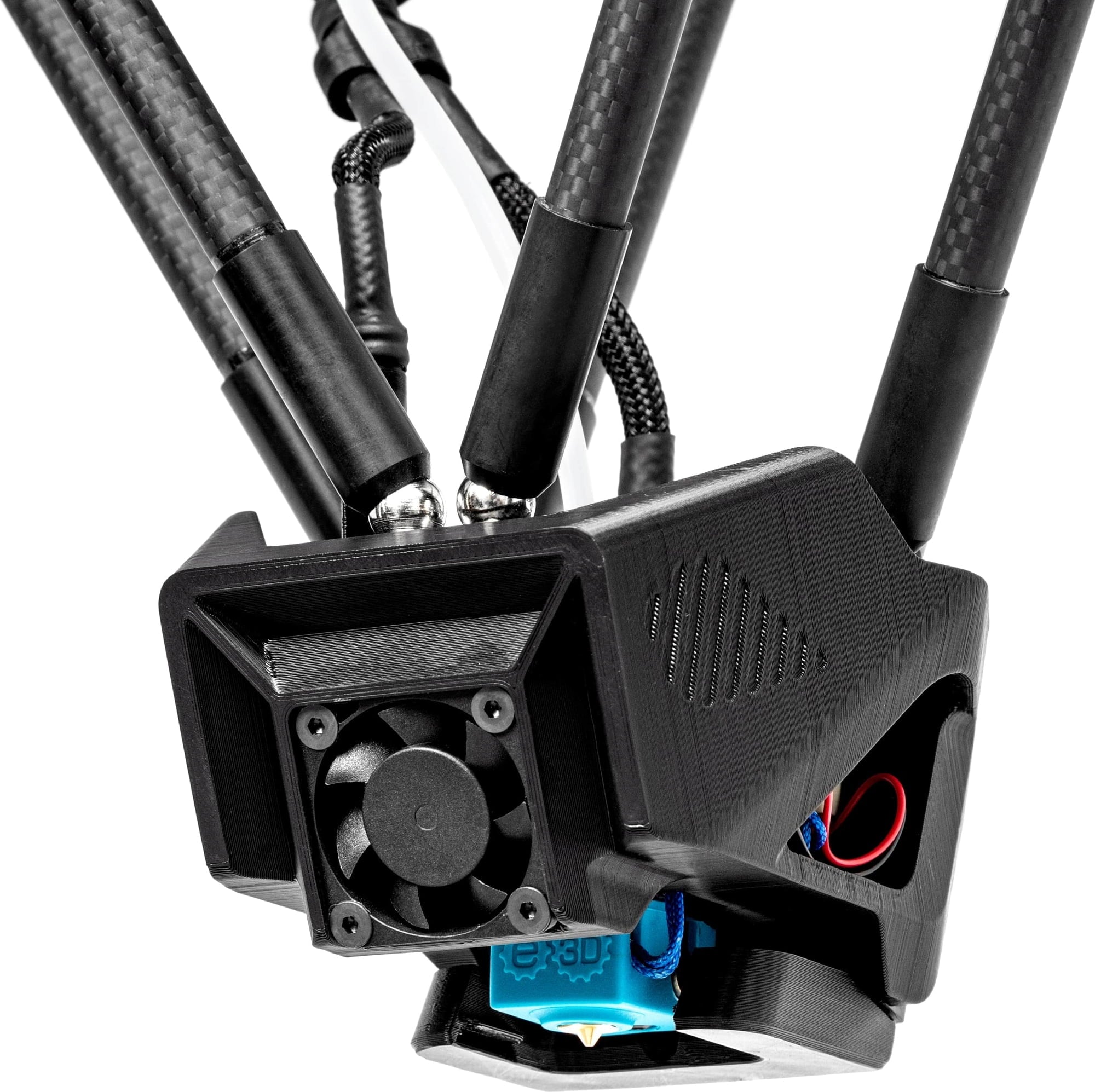

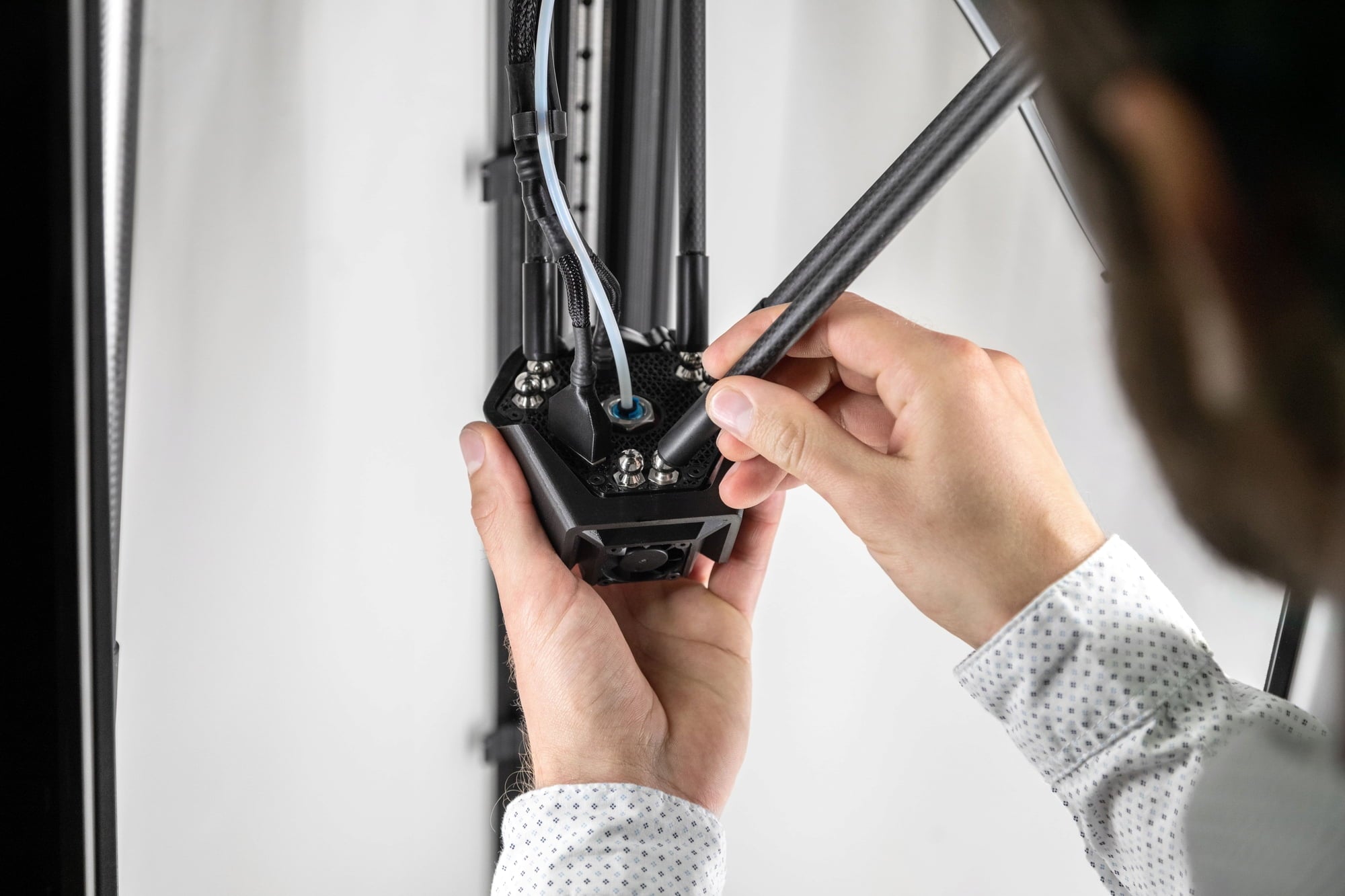

Replaceable magnetic print head

Depending on the application, you can choose the most suitable magnetic head configuration. You can combine E3D V6, Volcano or SuperVolcano hotends with specific nozzle types and sizes. In addition, each printhead is equipped with an auto-calibrated strain gauge to ensure a truly perfect first layer.

Electronics actively cooled

All electronic and control systems have been separated from the printing chamber and placed in a separate, actively cooled chamber. This prevents thermal stresses on the electronics during prolonged printing at high temperatures.

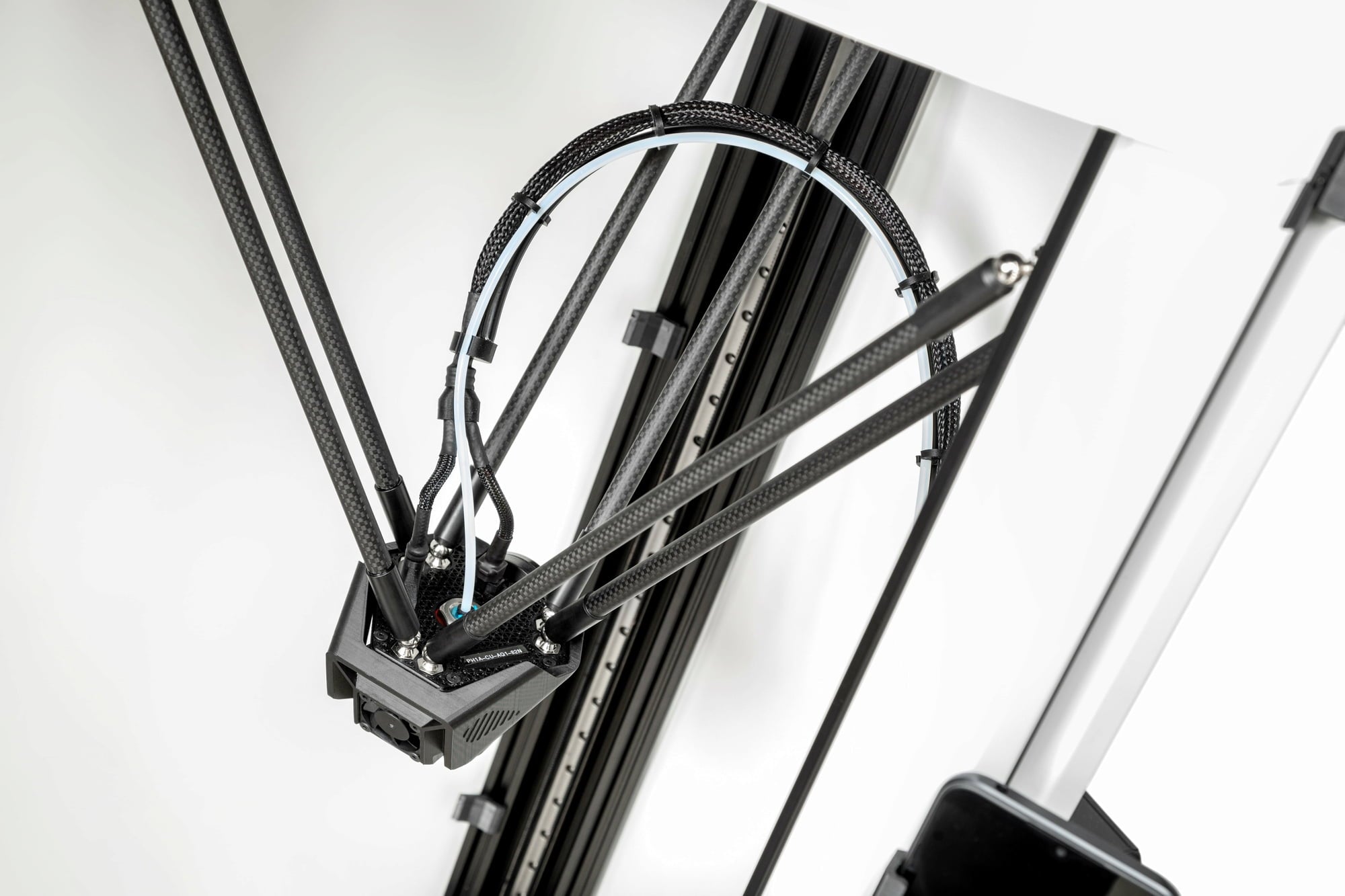

Delta kinematics

The print head rests on extremely light and stiff carbon arms mounted on strong magnets. Together with the state-of-the-art THK linear guide, Delta kinematics ensures fast, precise and repeatable movements that result in perfect prints.

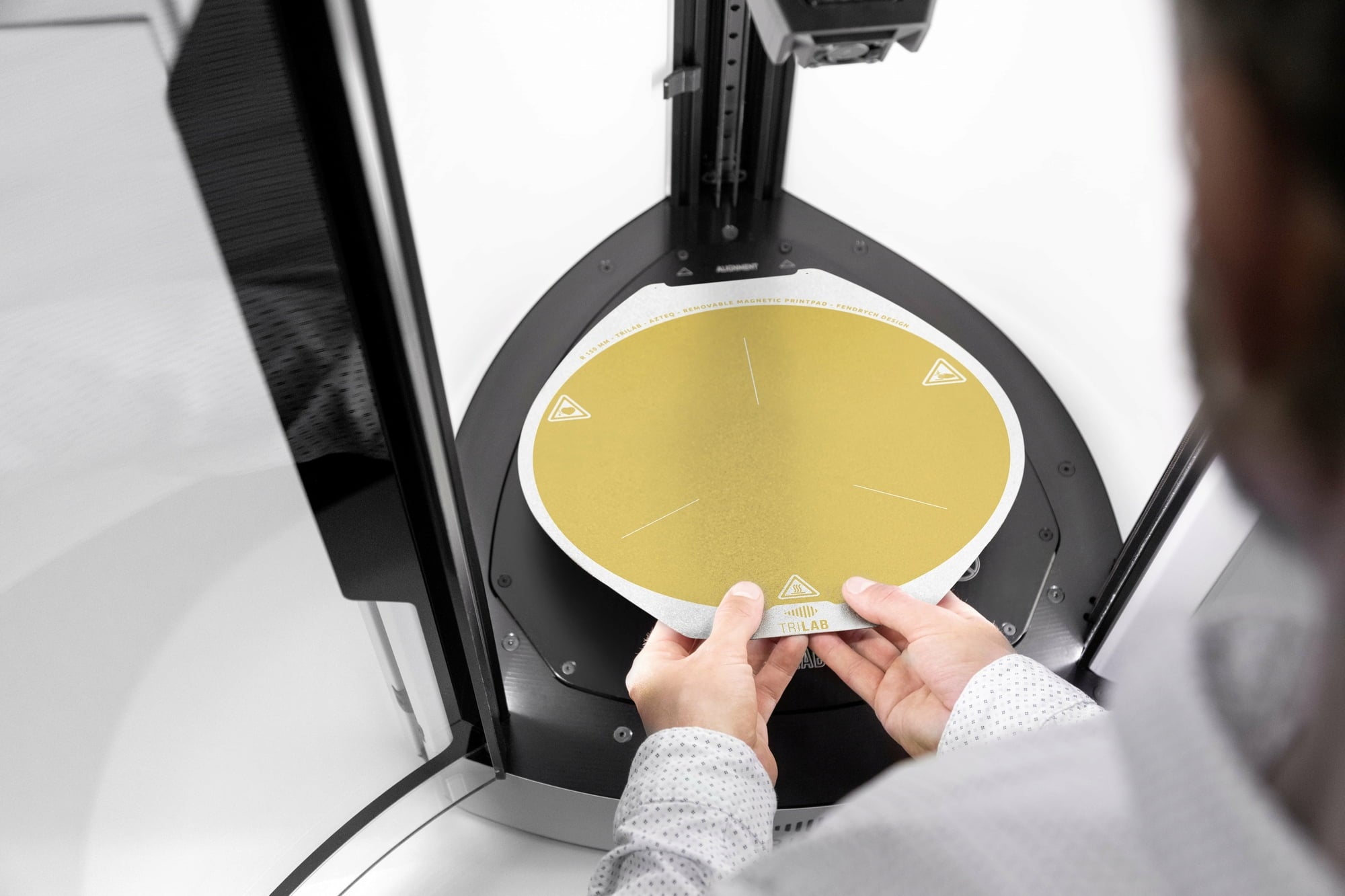

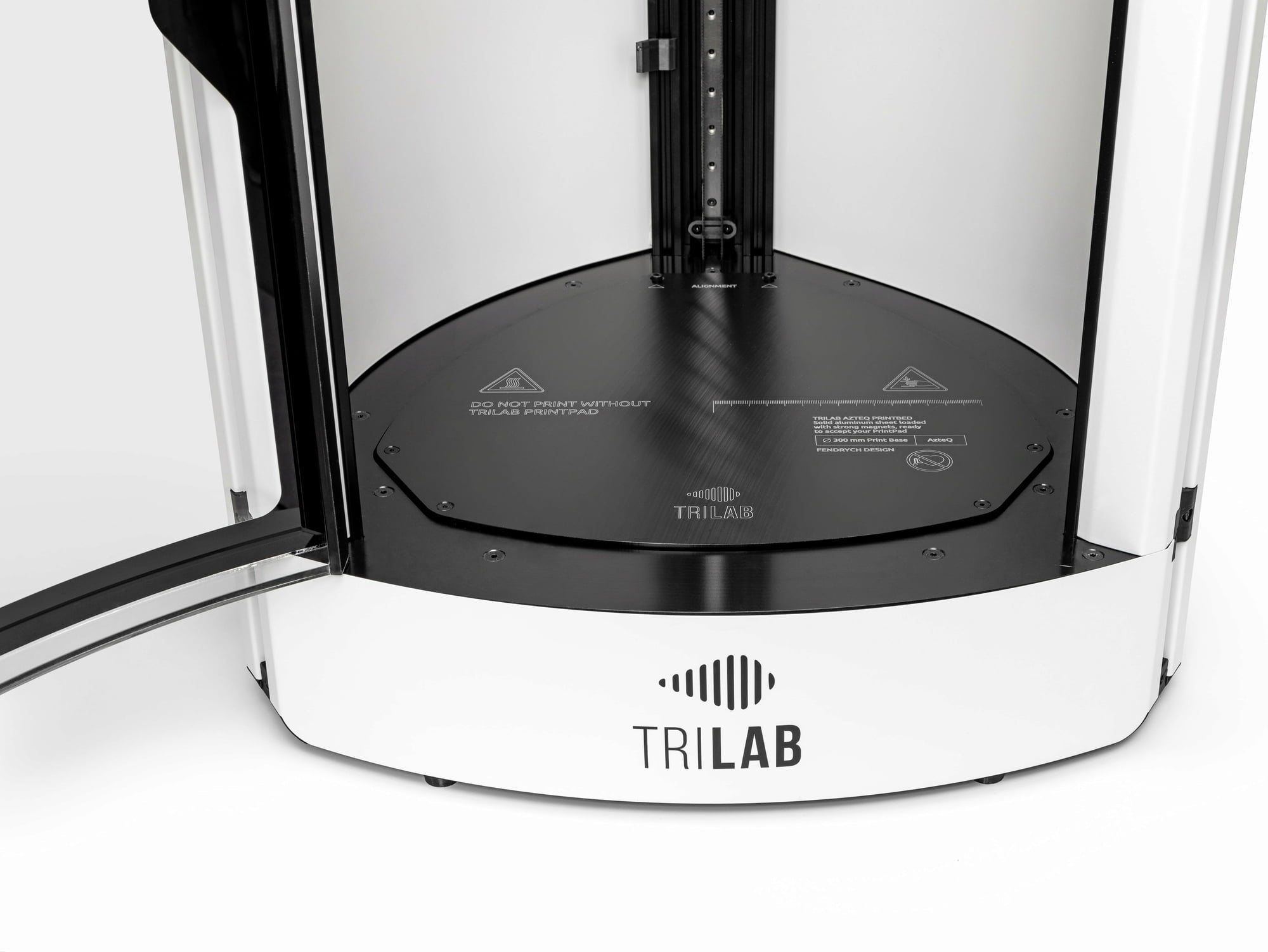

Flexible and removable PrintPads

Flexible PrintPad allows you to easily remove the model after printing and is the first step in the automation of additive production. In addition, a wide range of PrintPad surface variants ensures optimal adhesion to the various types of materials used.



Print from multiple materials with QuadPrint

Multi-material printing is available as an option with the QuadPrint 3 Pro extension, which allows you to combine up to 8 colors or materials into a single 3D print.

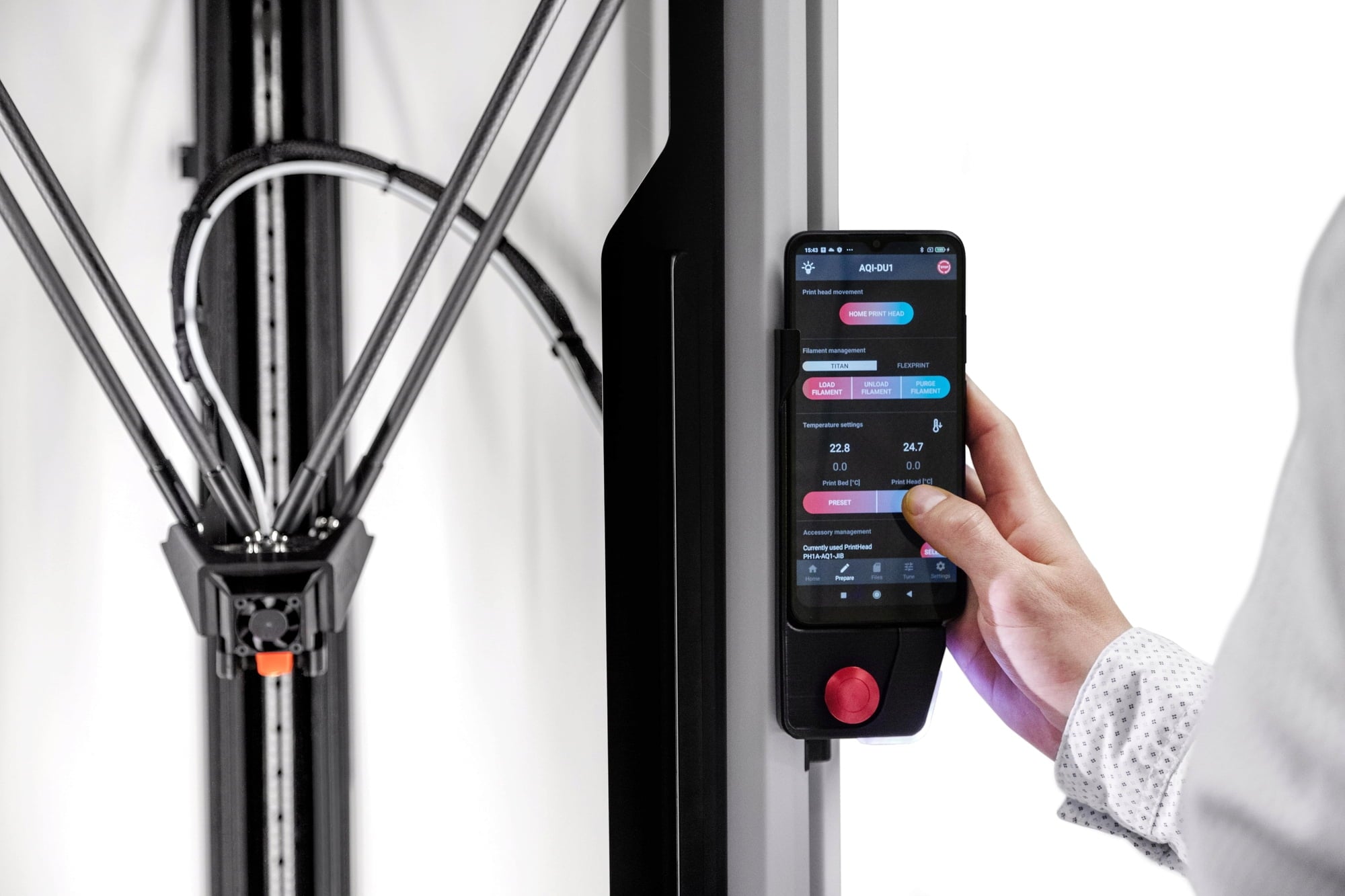

Full control of the printer

The printer can be controlled by means of the DeltaControl wireless display located on the docking station, manually or with WebControl via a PC or Mac computer.

Always under control of multi-day printouts

The AzteQ 3D printer, thanks to the lighting of the printing chamber, an integrated camera, enables remote control over the printer and trouble-free operation for many days.



Print everything

AzteQ enables printing from all major FDM printing materials. It is designed for high-volume printing using mechanically resistant materials such as ABS, ASA, PA, PC etc. It can also handle simpler materials such as PLA, PETG and CPE.




Technical and composite materials

The hardened nozzle allows printing from technical materials such as ABS / ASA, Nylon or Nylon with CF.

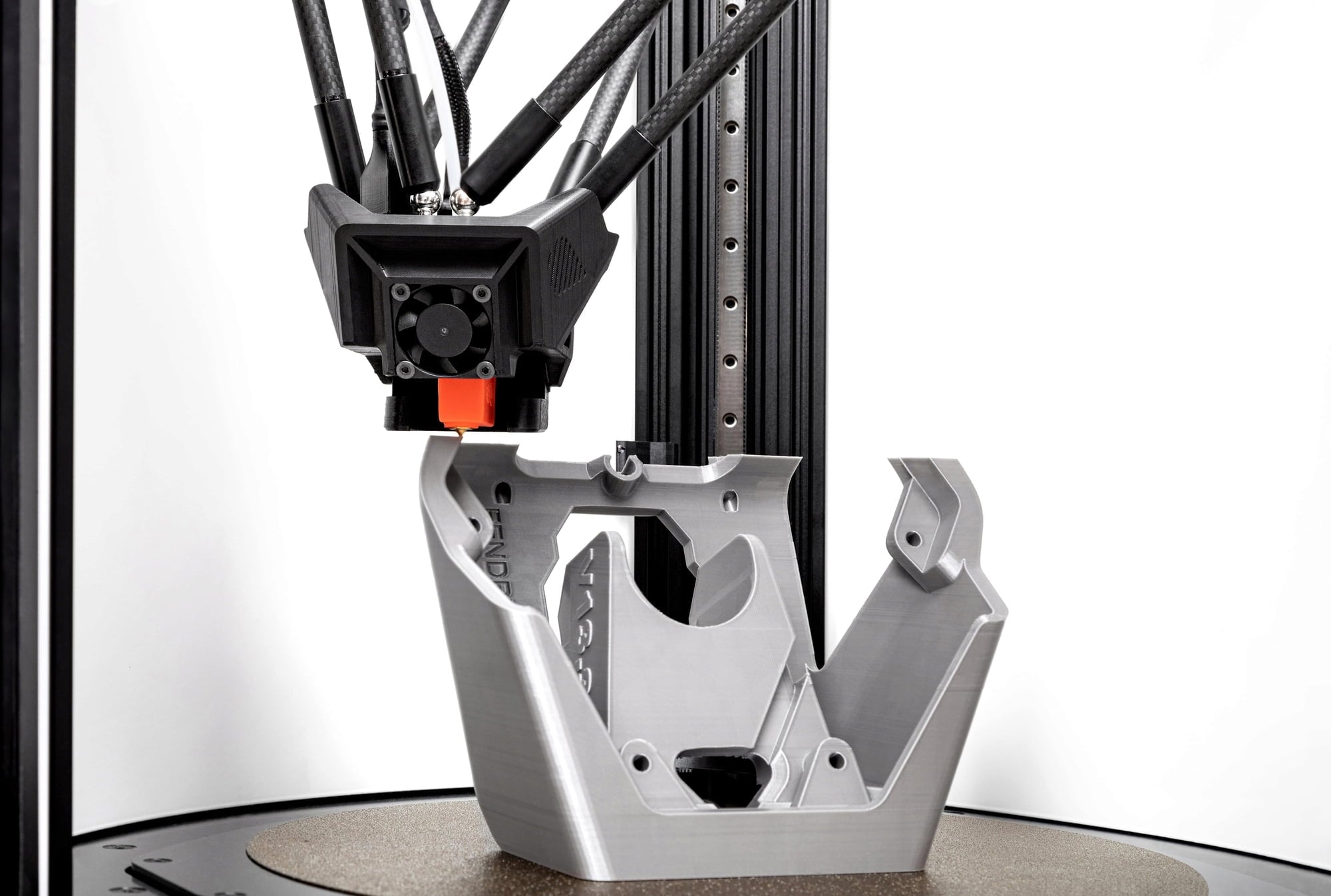

Larger and difficult models

Larger and more difficult models are printed without or with a limited need for supports of the same material.

Standard models and materials

Printing from PLA, PETG or CPE materials is characterized by an excellent surface quality.

Data sheet

Print Technology FDM (Fused Deposition Modeling)
Table temperature Max. 105 °C
Working area AzteQ: Ø 300 mm (X, Y) × 400 mm (Z)
Supported materials ABS, ASA, PA, PC, PP, PETG, CPE, PLA, including composite and filled analogues
Filament diameter 1.75 mm
Extruder E3D Titan
Nozzle temperature 300 ° C - default, high temperature printhead up to 400 ° C
Build Plate Massive, 8 mm thick aluminum heated bed
Supports print formats STL/gcode; Primarily supported PrusaSlicer, Kisslicer; alternatively gcode from Cura, Simplify3D
Connectivity LAN or WIFI with local or remote access 3x USB: WIFI / LAN module / USB disk / webcam / Palette 2
Power 220-240V input; 10A; 50-60Hz
Printhead E3D V6 Volcano
Rodzaj drukarki FFF, FDM, LPD
Rozdzielczość osi X/Y According to the used nozzle in the range of 0.25-1.2 mm, standard 0.4 mm
Rozdzielczość osi Z A layer height of down to 50 microns, maximum layer height depends on the used nozzle
Chamber temperature 80 °C
Storage temperature 0-32 ˚C
Weight 38 kg
Dimensions AzteQ: 59 x 52 x 105 cm
Working Temperature Recommended printer operating temperature is 20 - 32 ° C
Control interface Wireless 6.5 "DeltaControl” in-hand display or the AzteQ Hub charging station located directly on the frame
Print Monitoring An LED color indicator on the AzteQ Hub allowing for a visual status check of the printer; Upper integrated camera
Multifilament printing TRILAB QuadPrint - a solution for combining up to 4 colors or different materials
Print chamber An actively heated print chamber up to 80 °C
