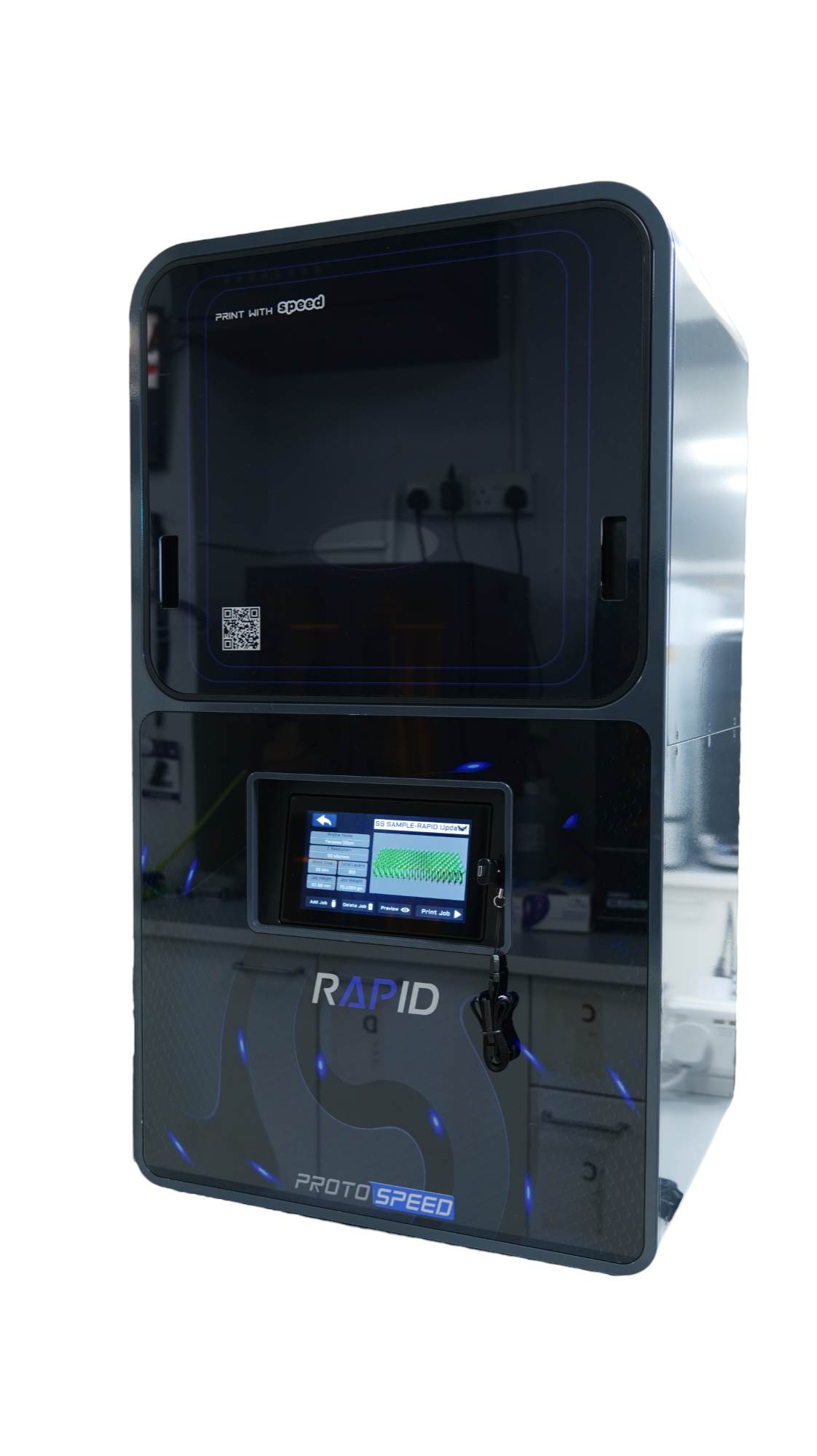

The ProtoSpeed Rapid is the fastest* 3D Printer For Jewelry With Ultra High Resolution.
Made-to-Order: 2 Week Lead Time
Rapid is the fastest* DLP 3D printer, with a printing capability of 50-65mm per hour at a 50µm layer thickness. With an XY resolution of 49 µm, the Light Engine enhances the quality of prints with smoother surfaces and crisp details, 24/7 supported by high-tech castable resins with high wax content offered by Protospeed.
Rapid is designed to easily integrate into jewelry manufacturing workflows, with its compact sizing and user-friendly interface. Rapid comes with a long-life vat, which is capable of handling over 1000 printing jobs, eliminating the need for frequent platform calibrations and tray changes.
- Pre-calibrated
- Print up to 200mm in Z
- Print casting tree directly
- 24/7 production environment
- Robust structure for high stability
- An open material system
Technical Information
|
Built Volume X,Y,Z : |
190 x 107 x 200mm |
|
Pixel Size :
|
49um |
|
Technology :
|
DLP |
|
Led Wavelength :
|
405nm |
|
Production :
|
Jewelry, Dental & Industrial |
|
Software :
|
Protospeed Composing Software |
|
File Inputs :
|
STL |
|
Network Compatibility :
|
Wi-Fi, Ethernet |
|
Power Requirements :
|
100 - 240VAC, 50/60Hz, 500watts |
|
System Sizing :
|
482 x 394 x 845mm (47Kg) |
|
Packed Sizing :
|
593 x 504 x 970mm (56Kg) |
|
Warranty :
|
12 months manufacturer warranty |
|
Technical Support :
|
Unlimited Lifetime Technical Support Included |
|
Bundle Includes :
|
3D printer, Support & Slicing Software, 1kg Resin,
1 long-life tank |
