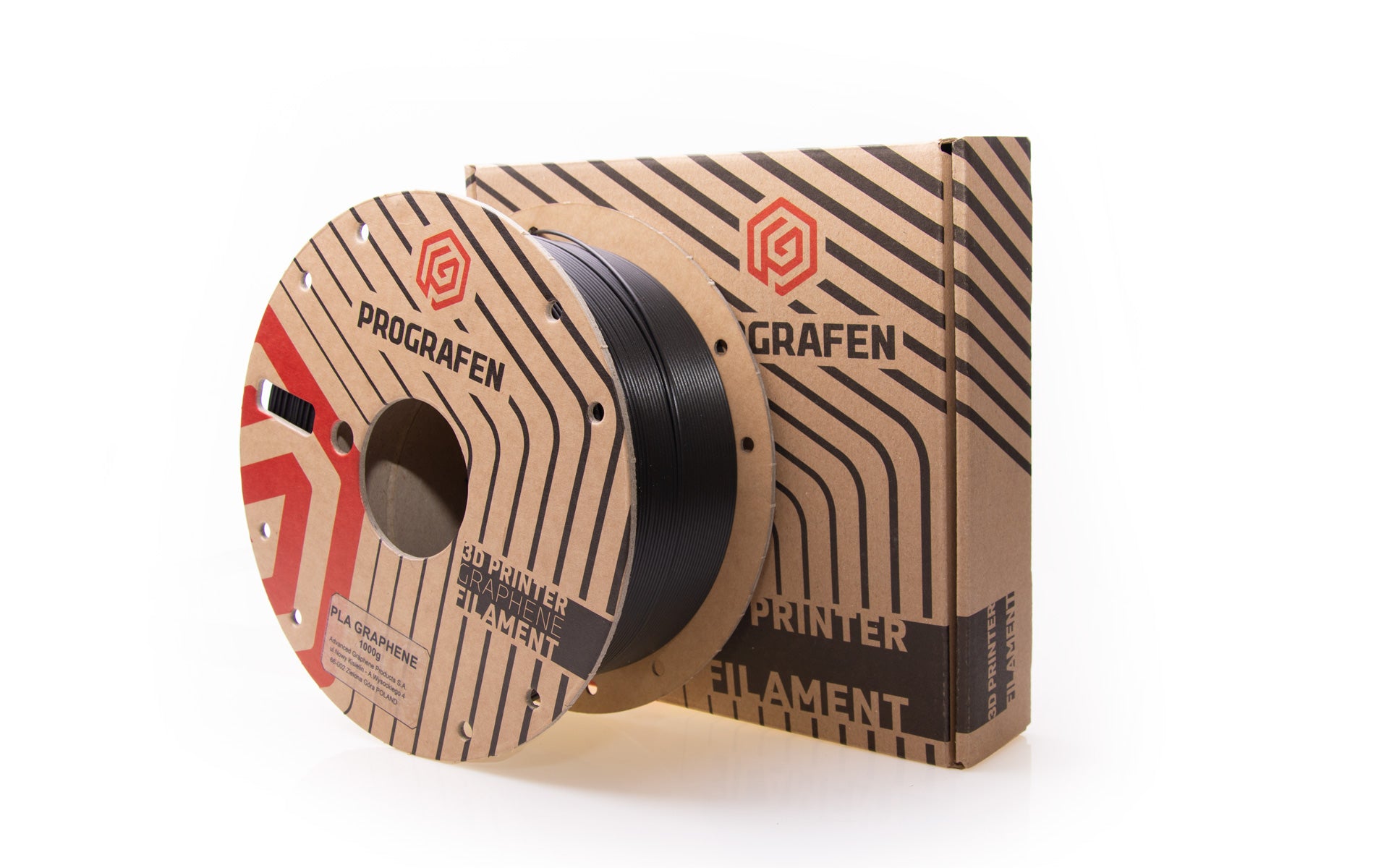

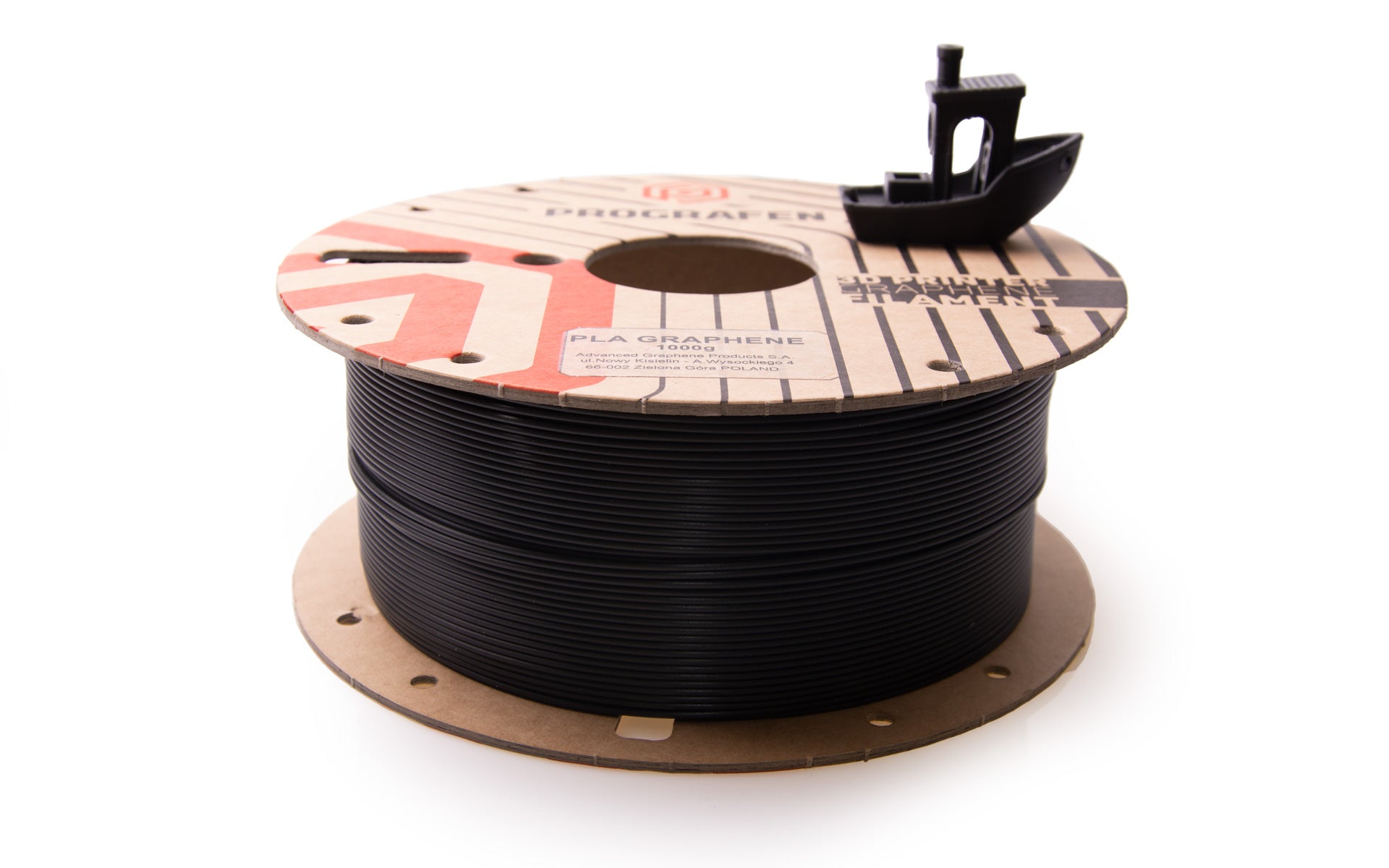

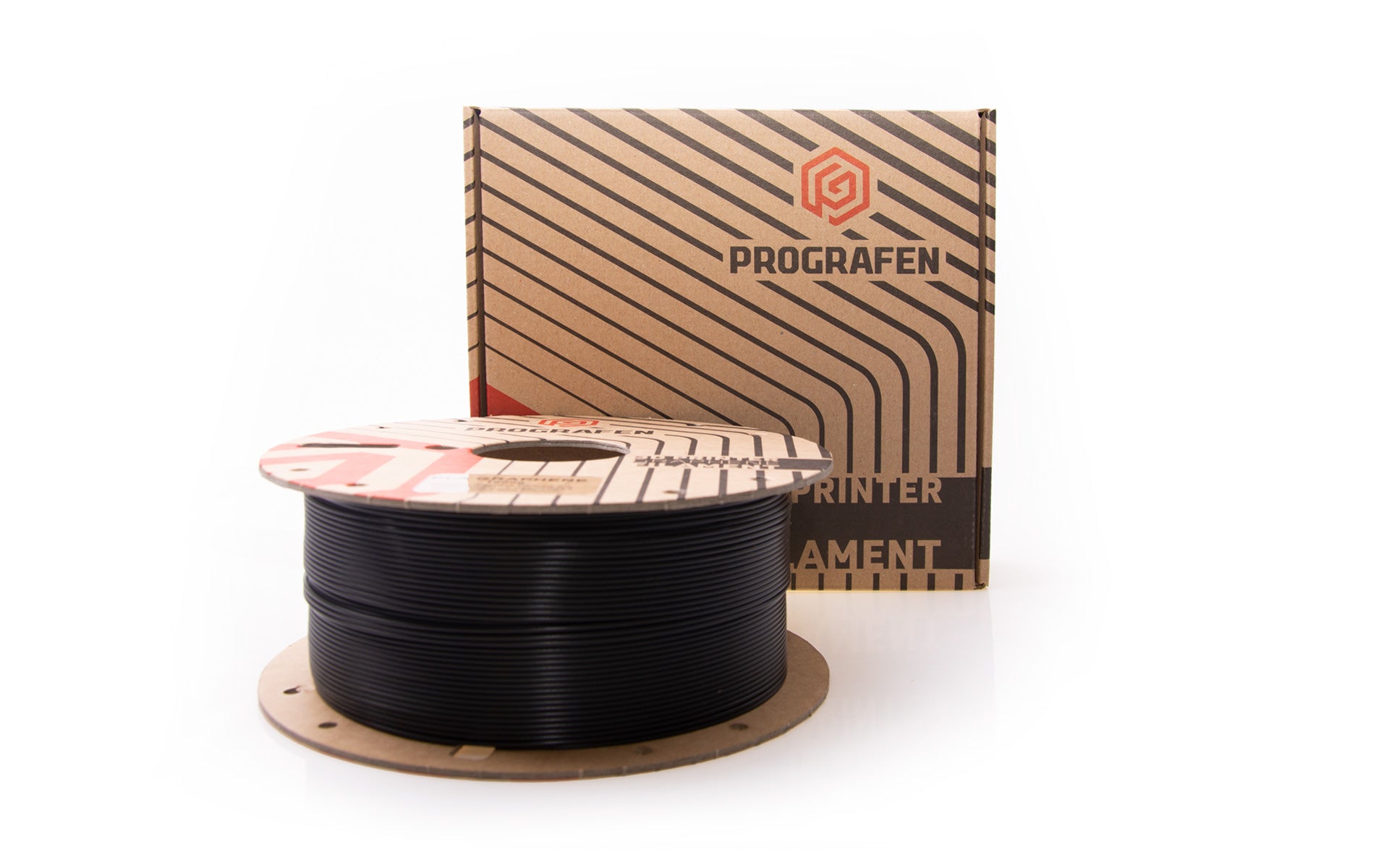

PLA PROGRAFEN GRAPHENE filament is a black material for general-purpose use. It is a material based on a high-molecular-weight biopolymer.
Apart from the standard properties of PLA filaments, the addition of graphene increases the elasticity and tensile strength of the filament.
Key features of the PLA Prografen Graphene Filament
- Printed parts have higher abrasion resistance;
- they feature a very high friction coefficient of printed parts;
- the filament can be easily extruded through standard nozzles ensuring their long service life;
- improved dimensional stability of the printout.
Additional information
| PLASTIC |
ADDITIVES |
FILAMENT DIAMETER |
ROUNDNESS |
| PLA |
GRAPHENE FLAKES |
1,75 +/- 0,03 mm |
+/- 0,02 mm |
| PROCESSING PROFILE |
| PRINTHEAD TEMPERATURE |
192-208°C |
377-406°F |
| WORKTABLE TEMPERATURE |
20-60°C |
68-140°F |
| PRINTING RATE |
30-60 mm/s |
| POST-PROCESSING |
PAINTING |
| SUBSTRATE |
GLASS, MASKING TAPE |
| THESE ARE JUST THE INITIAL VALUES THAT MAY REQUIRE SOME OPTIMISATION |
