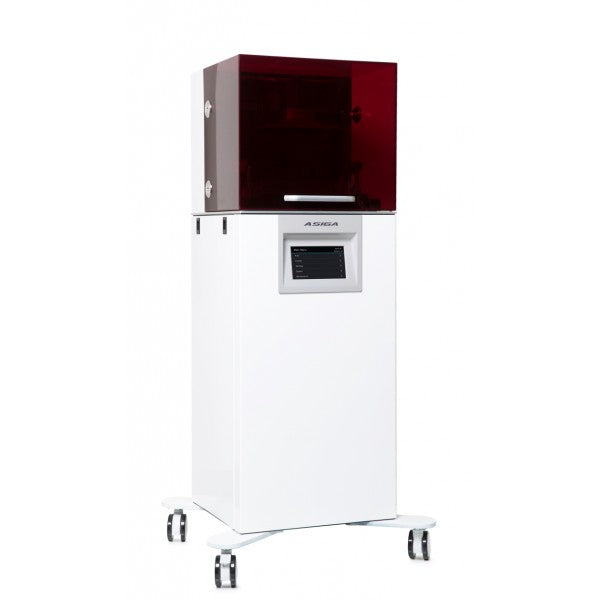

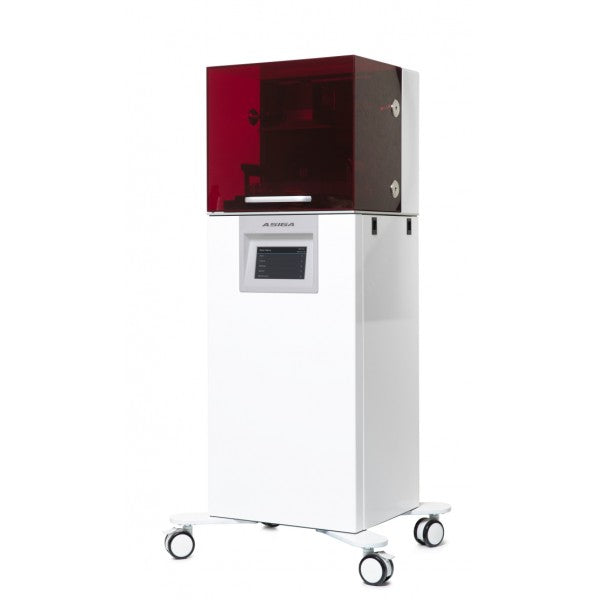

The Asiga PRO 4K 3D printer uses the latest DLP imaging technology to achieve the largest print envelope in the Asiga range, with precision, reliability and speed for the most demanding production applications.
Made-to-Order: 3-4 Week Lead Time
Price available upon request, contact Pro3D Shop: info@pro3dshop.com
Asiga PRO 4K can print highly detailed models for Jewellery, Dentistry or Audiology without compromising on available printing area, making it an ideal choice for high-volume production.
It uses an open materials system which allows the use of suitable third-party and industry-standard resins.
The Asiga PRO 4K is available in either a 65-micron or 80-micron configuration, with a choice of a 405nm or 385nm (UV) light source.
PRO 4K65
The PRO 4K65 has a build volume of 176x99x200mm and a print resolution of 65 microns. Speak to our Pro3D experts to discover what variation is suitable for your needs.
PRO 4K80
The PRO 4K 65 has a slightly larger build volume of 217x122x200mm and a print resolution of 80 microns. Speak to our Pro3D experts to discover if this variation is suitable for your needs.
Asiga PRO 4K Specifications
Find below the specifications for the Asiga PRO 4K 3D printer range:
|
Printing Technology
|
DLP
|
|
Build Volume W X D X H (Mm) // W X D X H (Inch)
|
4K65: 176x99x200mm (6.94x3.9x7.87 in); 4K80: 217x122x200mm (8.54x4.8x7.87 in)
|
|
Layer Thickness / Print Precision
|
1 micron
|
|
Weight
|
140 kg (309 lb) |
| Material Type |
Open - Asiga materials and suitable third party materials |
| XY Resolution |
4K65: 65 microns; 4K80: 80 microns |
| Dimensions |
465x420x1370mm (18.3x16.5x53.9 in) |
| Connectivity |
Wifi, Ethernet |
| Printer Software |
Asiga Composer |
| Software Compatibility |
Windows, MacOS and Linux |
| Input Voltage / Power |
100-240v |
| Shipping Dimensions |
910x640x1560mm (35.8x25.1x61.4 in) |
| Shipping Weight |
205 kg (452 lb) |
Additional features
- Single Point Calibration - Calibrate in under 60 seconds
- Auto Power-Off - Energy saving mode and auto-recovery
- Environmental Control - Onboard heater for reliable performance
- Fast Material Change-over - Change materials in less than 30 seconds with no calibration required
- High Power LEDs - For long-term reliability, and accuracy for processing a wide range of materials
- Open Materials System - Use any Asiga material and any suitable third-party material
- Remote Access and Control - Streamlined integration into your digital workflow
- Internal Radiometer - Actively monitors LED intensity during each build to ensure that the correct light exposure is delivered for every layer
- Smart Positioning System (SPS) Technology
- Touch Screen Display - For greater user convenience
